إن Urban Delivery Electric Truck V302 is a compact electric cargo truck designed for efficient city logistics. With a 3.4 m³ cargo box, stable LFP battery system, and reliable electric drivetrain, it delivers a practical, low-emission solution for last-mile and urban distribution.
إن شاحنة كهربائية للتسليم الحضري is a purpose-built urban logistics vehicle combining compact dimensions, strong payload capability, and dependable electric performance. It is engineered to meet the demands of daily city delivery, light commercial transport, and environmentally responsible fleet operations.
| نموذج | شاحنة كهربائية للتسليم الحضري |
| نوع الصندوق | صندوق الشحن |
| سعة الحاوية (m³) | 3.4 متر مكعب |
| قدرة الحمل المسموح بها (كجم) | 475 |
| الأبعاد الكلية (مم) | 3820*1480*1900 |
| وزن الحد (كجم) | 945 |
| أبعاد الحاوية (مم) | 2025*1400*1185 |
| نطاق NEDC (كم) | 140 |
| مقعد(ات) في الكابينة | 2 |
| قاعدة العجلات (مم) | 2450 |
| الكتلة الكلية (كجم) | 1550 |
| وقت الشحن – عادي (ح) | 6-8 ساعة |
| نوع البطارية | LFP |
| قوة المحرك – تقييم (كيلوواط) | 15 |
| ماكس. عزم الدوران (ن · م) | 130 |
| التدرج (٪) | > 10% |
| السرعة القصوى (كم/ساعة) | > 70 |
| نوع المحرك | PMSM |
| نوع القيادة | س |
| سعة المحور الأمامي / الخلفي (كجم) | 450/425 |
| حجم الإطارات | 145R12 LT 8PR |
| المسار الأمامي / الخلفي (مم) | 1290 |
| نوع الفرامل (s) | قرص / طبل (F / R) |
Electric Delivery Truck / Electric Cargo Van / Light Commercial Electric Vehicle

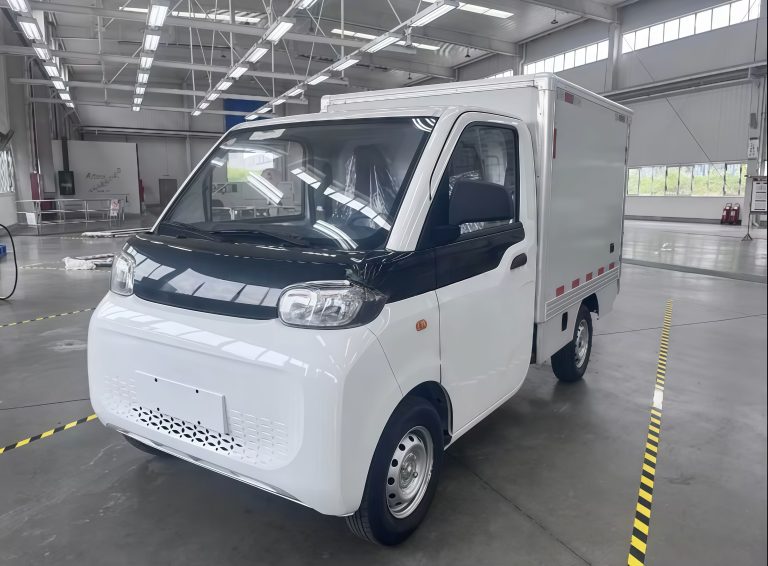

إن Urban Delivery Electric Truck V302 is designed to operate efficiently in congested urban environments while maintaining sufficient cargo capacity for professional delivery tasks. With overall dimensions of 3820 × 1480 × 1900 mm و أ wheelbase of 2450 mm, the vehicle offers balanced handling, stability, and maneuverability for city streets and industrial zones.

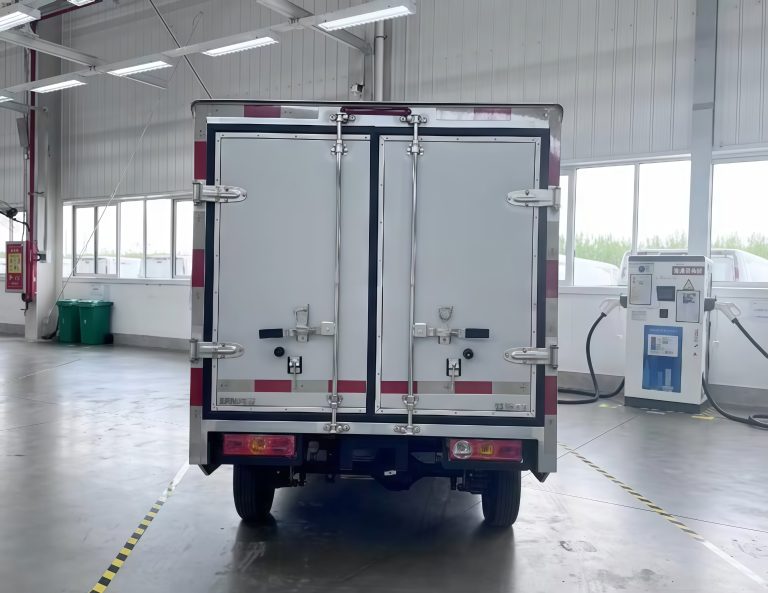

The enclosed cargo box configuration provides a 3.4 m³ container volume, with internal container dimensions of 2025 × 1400 × 1185 mm, ensuring secure and weather-protected transport of goods. A rated load capacity of 475 kg و overall mass of 1550 kg make the V302 suitable for a wide range of urban logistics applications, including parcel delivery, retail distribution, and service operations.
مدعوم من قبل 15 kW permanent magnet synchronous motor (PMSM), the V302 delivers a maximum torque of 130 N·m, providing responsive acceleration under load. The vehicle adopts a rear-wheel drive (4×2) layout, ensuring reliable traction and efficient power transmission for urban driving conditions.
إن LFP battery system offers enhanced thermal stability and long service life, supporting a NEDC driving range of up to 140 km on a single charge. With a normal charging time of 6–8 hours, the vehicle is well-suited for overnight charging and daily operational cycles.

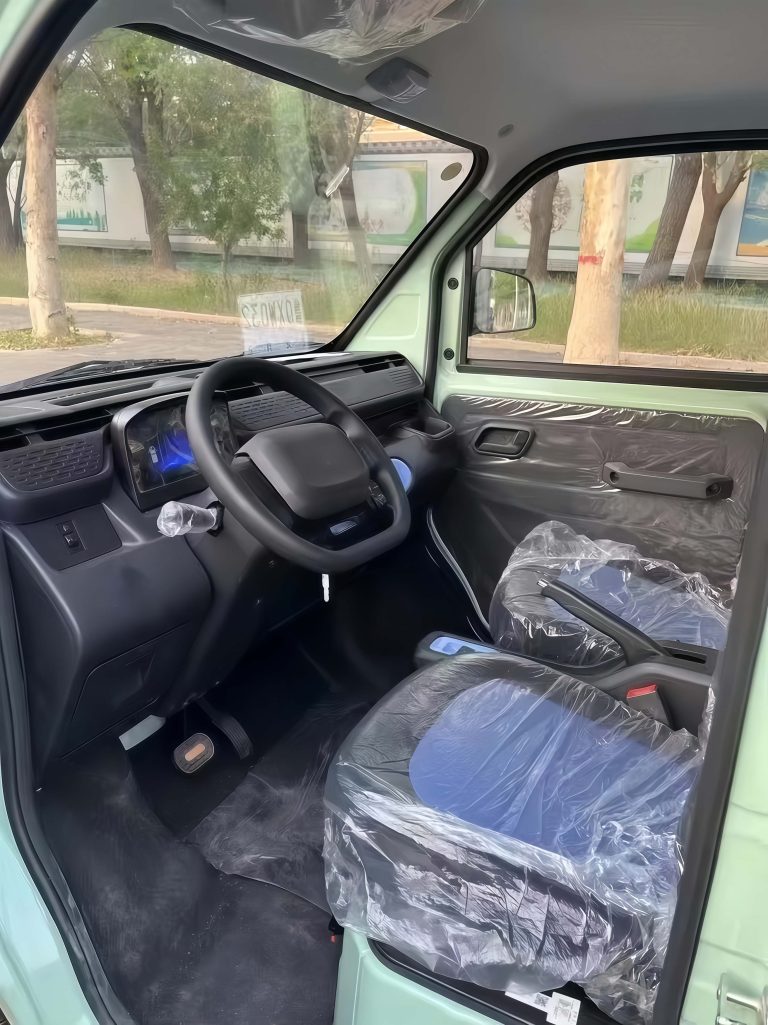

In terms of performance, the V302 achieves a maximum speed exceeding 70 km/h و أ gradeability greater than 10%, enabling it to handle flyovers, ramps, and moderate inclines commonly found in urban areas. The cab features two seats, providing a comfortable working environment for driver and assistant during daily delivery operations.
The chassis system is engineered for durability and safety. A نظام الكبح على القرص الأمامي والطبل الخلفي ensures effective braking performance under varying load conditions, while 145R12 LT 8PR tires deliver dependable load-bearing capacity and road adaptability. The front and rear axle capacities of 450 kg and 425 kg, respectively, further enhance vehicle stability and durability in commercial use.
Compact electric urban delivery truck design
3.4 m³ enclosed cargo box
LFP battery with 140 km NEDC range
15 kW PMSM motor with 130 N·m torque
Disc/drum braking system (front/rear)
Efficient operation in congested city environments
Stable and long-life battery chemistry
Balanced payload and driving performance
Reduced operating and maintenance costs
Lower total cost of ownership for delivery fleets
Improved delivery efficiency and route coverage
Compliance with urban emission regulations
Reliable solution for daily commercial use
Proven LFP battery technology
Commercial-grade chassis and axle design
Optimized for professional urban logistics
Last-mile parcel delivery
Urban retail distribution
Food and beverage logistics
Service and maintenance fleets
E-commerce and courier operations
إن Urban Delivery Electric Truck V302 is developed to meet the practical needs of modern city logistics. Backed by professional manufacturing standards and flexible customization capabilities, it provides a dependable electric solution for businesses seeking efficient, compliant, and sustainable urban transportation.
البحث عن موثوق electric delivery truck for urban logistics or fleet deployment?
Contact us today to receive detailed specifications, customization options, pricing information, and professional technical support for the V302 electric cargo truck.
Q1: What is the maximum payload capacity of the V302?
قدرة الحمل المسموح بها هي 475 kg, suitable for urban delivery applications.
Q2: ما هو نطاق القيادة لكل شحنة؟
The vehicle offers a NEDC range of up to 140 km, depending on load and driving conditions.
Q3: What type of battery does the V302 use?
It uses an بطارية LFP, known for safety, durability, and long cycle life.
Q4: Is the vehicle suitable for city driving?
Yes. Its compact size, responsive motor, and efficient braking system make it ideal for urban environments.
Q5: Can this model be customized for fleet use?
Yes. OEM and configuration customization options are available for fleet and distributor requirements.
