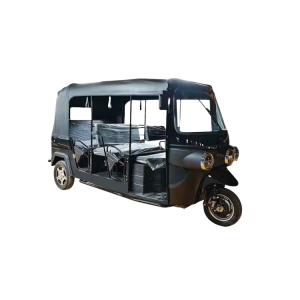

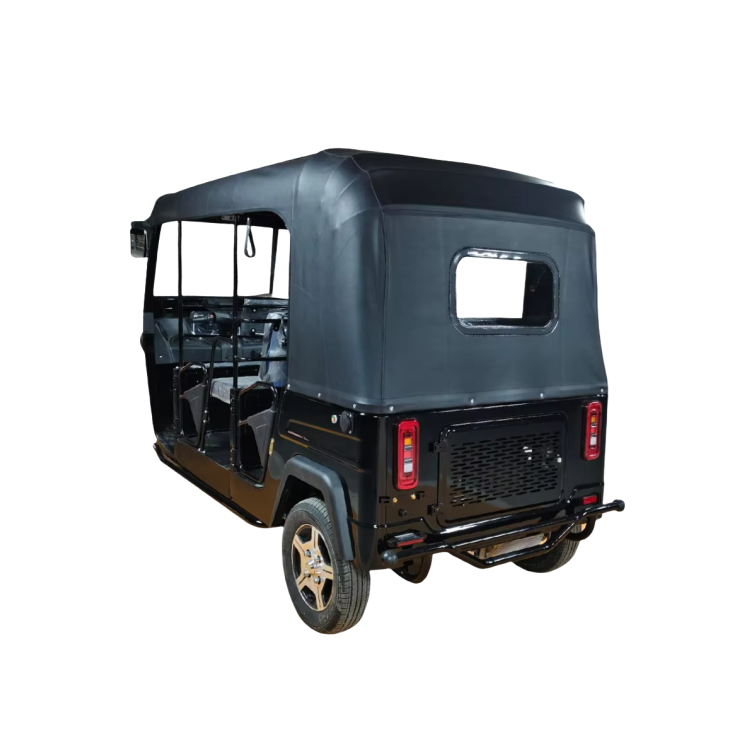

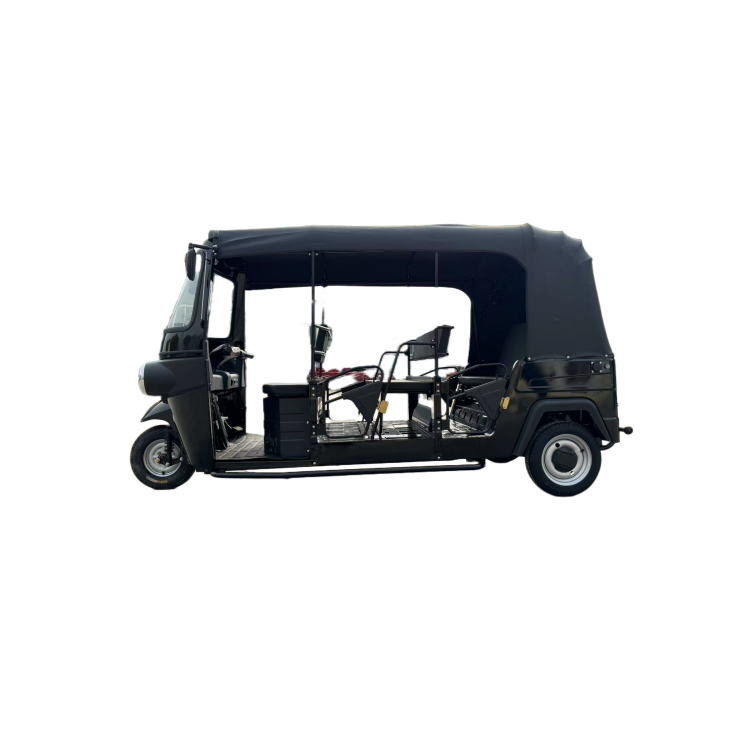

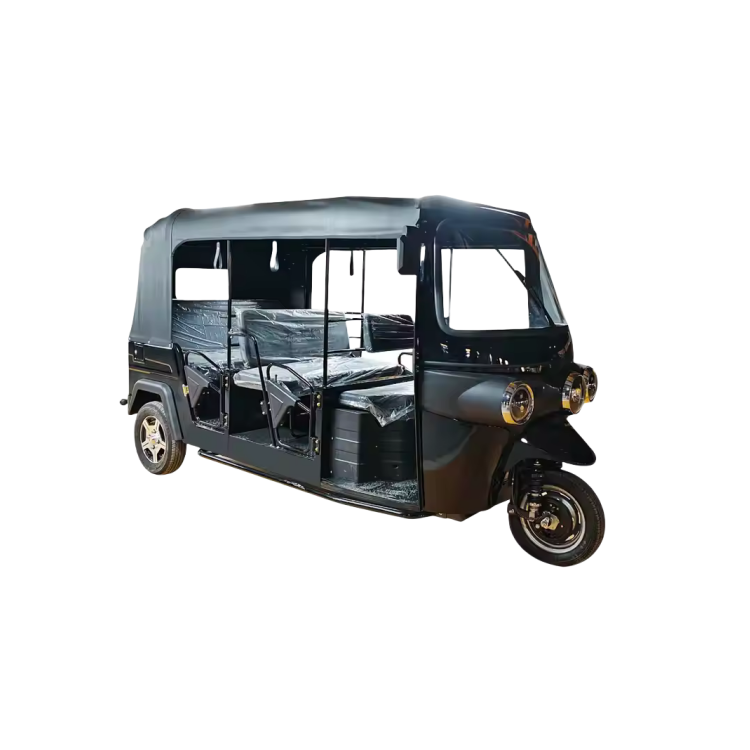

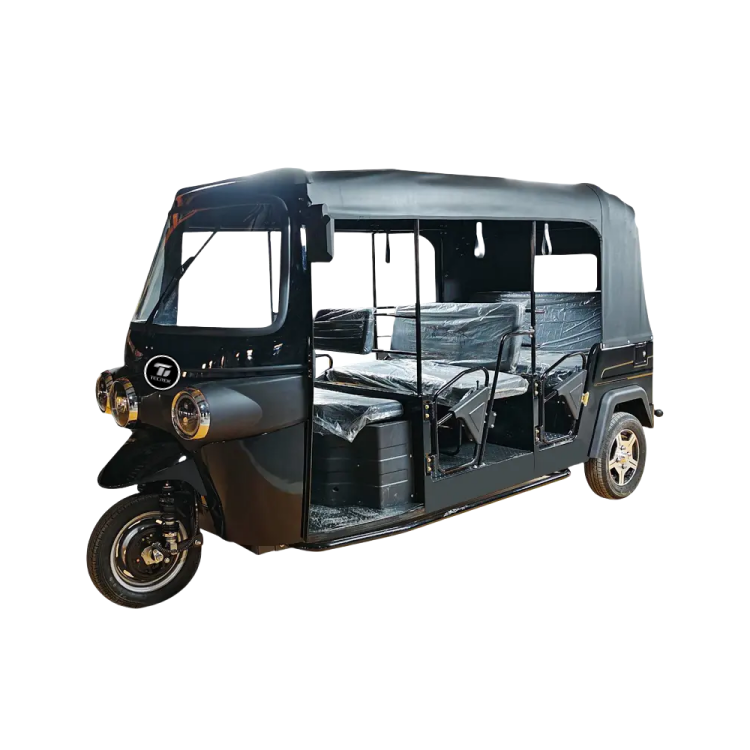

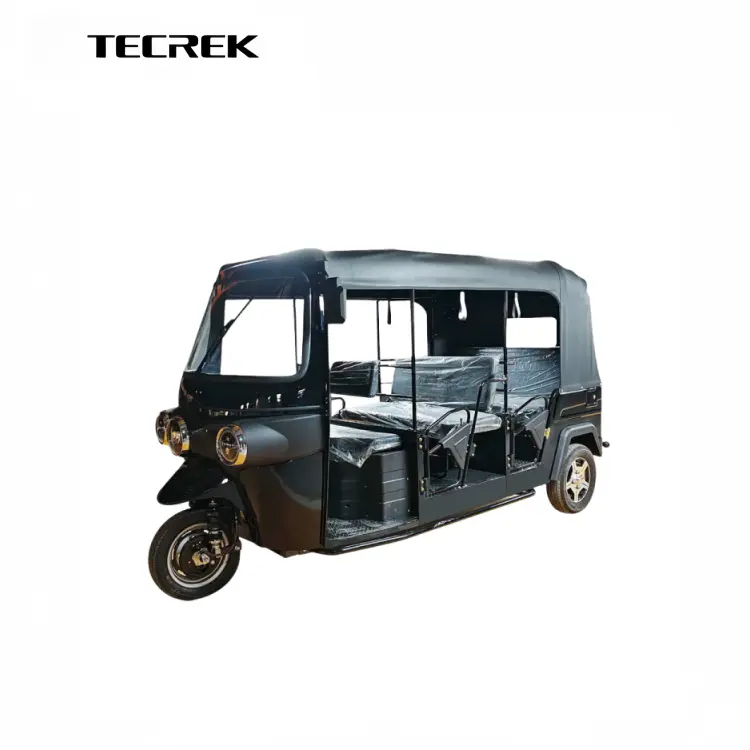

The 7 Seater TUK Electric Passenger Tricycle redefines group mobility with its industry-leading capacity and rugged performance. Engineered for commercial operations and large families, this heavy-duty trike transports 1 driver + 6 passengers across 165 km on a single charge while conquering extreme 35° gradients. Featuring automotive-grade suspension, dual oversized disc brakes, and adaptive 60/72V power, it dominates scenarios from factory commutes to tourist charters – all within a compact 3.43m footprint optimized for tight urban spaces.
The 7 Seater TUK Electric Passenger Tricycle redefines group mobility with its industry-leading capacity and rugged performance.
| Model | 7 Seater TUK Electric Passenger Tricycle |
| Overall vehicle dimensions(mm) | 3430*1350*1790 |
| Dashboard | Electrical with Dashboard |
| Motor controller | 60/72V 4000w adaptive, suitable for lithium iron phosphate batteries Voltage upper limit: 93v, lower limit: 63v |
| Rear axle | Oil bath brake, automotive ball joint rod |
| Front brake | 180mm diameter disc brake |
| Rear brake | 220mm diameter disc brake |
| Climbing angle | 35° |
| Front headlights | LED |
| Loading Capacity | 1+6people |
| Other optional | Manual parking brake, Bluetooth radio, USB charging, four-door |
| Wheel hub | wheel hub |
| Motor | 60V 4000W AC motor |
| Front shock absorber | Dual shoulder telescopic shock absorber front fork |
| Rear suspension | independent suspension |
| Maximum speed | 55 Km/h |
| Front and Rear tires | F 125-65-12/R 125-65-12 |
| Endurance | 140-165km |
| Battery | 60v150AH lithium-ion battery |
| Charging time | 8-10h |
| Loading in 40HQ | CKD 30 |
| Application Scenarios | Commuting to industrial parks, event pick-up and drop-off, sightseeing in scenic spots, community travel, and chartered vehicles for small tour groups |
Unmatched Passenger Capacity
7-Seat Configuration: Largest in-class capacity – transports work crews or families without multiple trips.
4-Door Option: Streamlined boarding for crowded venues/events (optional upgrade).
Extreme Terrain Performance
60V4000W AC Motor: Highest power density in category – tackles 35° slopes fully loaded.
Oil-Bath Rear Axle: Prevents overheating on sustained climbs (automotive ball-joint linkage).
Commercial-Grade Safety
Oversized Disc Brakes: 180mm (front) / 220mm (rear) halt 7 passengers at 55 km/h.
Reinforced Chassis: High-tensile steel frame + impact zones rated for group transport.
Ultra-Long Range Efficiency
60V150AH Lithium Battery: 140-165 km real-world range – 2.5x industry standard.
Fast Charging: 8-10 hrs for 0-100% (overnight turnaround).
| Feature | 7-Seater TUK | Standard E-Trikes |
|---|---|---|
| Passenger Density | 7 seats (class-leading capacity) | Max 4-5 seats |
| Climbing Ability | 35° slope performance (1:1.4 grade) | Avg. 20-25° capability |
| Braking Security | Dual oversized discs + oil-bath cooling | Basic drum brakes |
| Suspension Tech | Dual-shock front + independent rear | Rigid axles / basic springs |
| Commercial ROI | 30 CKD units/40’HQ container | 15-20 units (lower efficiency) |
Key Edge: Only trike merging minibus capacity with off-road climbing and industrial-duty components for high-volume transport.
Q: How stable is it with 7 passengers on hills?
→ A: Ultra-low center of gravity + 135/70R12 rear tires maintain traction; oil-bath axle prevents power loss on 35° inclines.
Q: Charging infrastructure for fleet operators?
→ A: Standard 60V charging (8-10 hrs); 30 CKD kits per 40’HQ container minimize shipping costs.
Q: Real-world range with full load + AC/heater?
→ A: ≥130 km (climate control reduces range by 10-15%) – still outperforms all competitors.
Q: Maintenance for heavy-duty use?
→ A: Oil-bath axle: 50,000 km service interval; Brake pads: 20,000 km lifespan (regenerative braking assist).
Q: Optional feature benefits?
→ A: 4-Doors: 40% faster boarding; Bluetooth/USB: Passenger comfort for charters; Parking brake: Hill safety.
Q: How does it compare to minivans?
→ A: 1.35m width for alley access + 65% lower operating costs + zero emissions compliance.
Suspension System: Dual-shoulder hydraulic front fork (30% longer travel) + independent rear with stabilizer bars.
Thermal Management: Brake cooling fins + motor temp sensors prevent overload fade.
Structural Integrity: Robot-welded tubular frame – tested to 2x max load (2,400 kg).
The People-Moving Powerhouse: This isn’t just a trike – it’s a compact transit revolution. With unmatched capacity, extreme terrain mastery, and commercial-grade durability, it replaces gas-guzzling vans while slashing operational costs. For operators who measure value in passengers-per-mile, the 7-Seater TUK delivers unprecedented ROI.
