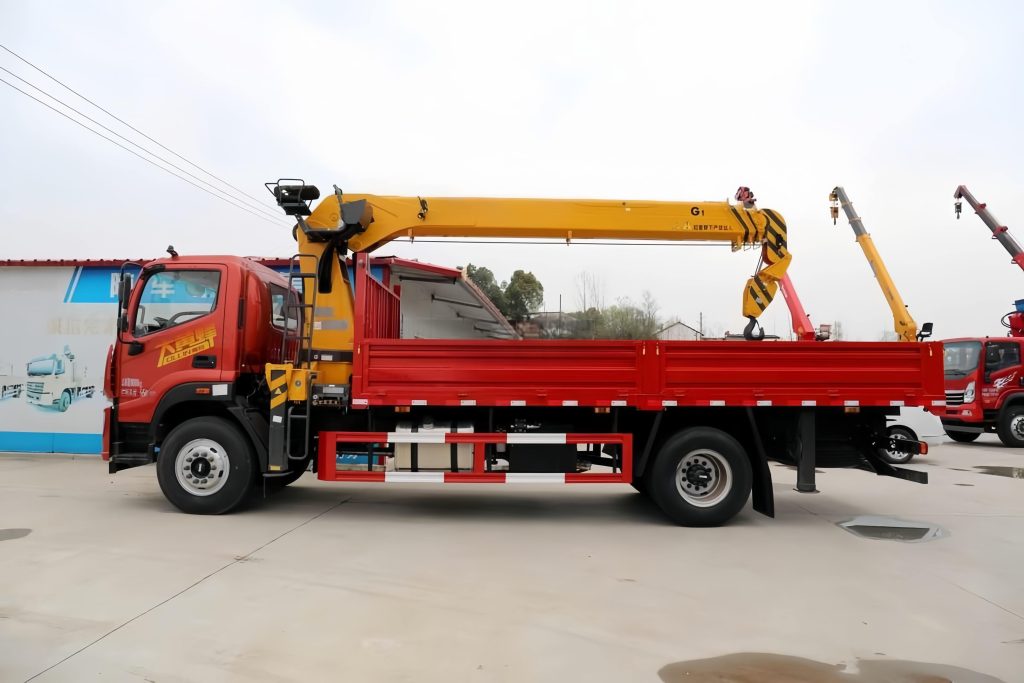

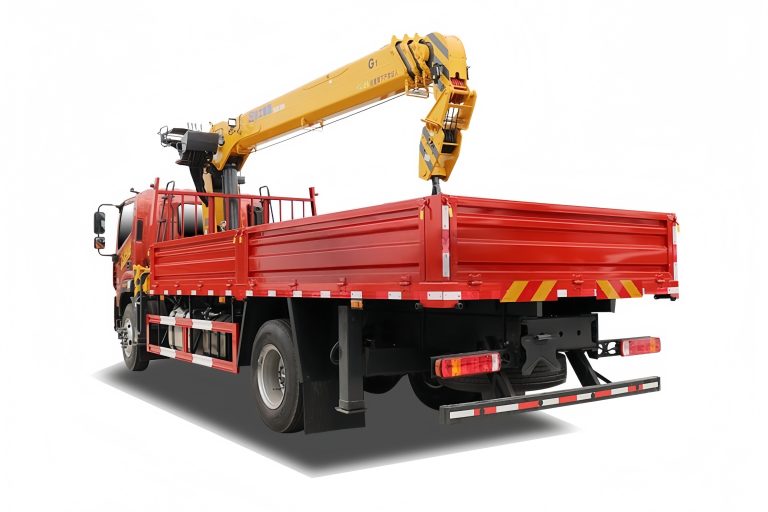

The 8T Straight Arm Truck Mounted Crane is a high-performance lifting and transport solution designed for construction, logistics, municipal engineering, and industrial applications. Equipped with a XCMG straight arm crane and compliant with National VI emission standards, this vehicle delivers reliable lifting capacity, flexible cargo handling, and stable on-road performance.
This truck-mounted crane integrates a robust Shandong Tairui chassis with an 8-ton straight arm crane, combining lifting, loading, and transportation functions in one unit. Multiple configurations of vehicle dimensions, wheelbases, and cargo box sizes are available to meet diverse operational requirements.
| Model | 8T straight arm truck mounted crane |
| Vehicle Name | National VI Truck-Mounted Crane |
| Overall Dimensions (mm) | 9000, 8710, 8245, 7780*2550, 5000*3850, 3780, 3700, 3650 |
| Gross Mass (kg) | 18000 |
| Curb Weight (kg) | 12000, 11500 |
| Fuel Type | Diesel |
| Wheelbase (mm) | 4200, 4500, 4800, 5150, 5000, 6000, 6000 |
| Chassis Brand/Model | Shandong Tairui / BJ1189VFJPK-A01 |
| Engine Model | F4.5NS6B220 |
| Horsepower (ps) | 220 |
| Drive Type | 4×2 |
| Crane Type | Straight Arm |
| Cargo Box Dimensions (mm) | 6200, 6100, 5800, 5500, 5200, 5000, 4450×2450, 2400×660, 550, 500 |
| Rated Mass (kg) | 5805, 5558, 706, 970 |
| Maximum Speed (km/h) | 100, 90 |
| Emission Standard | GB17691-2018 National VI |
| Tire Specification | 10.00R20 18PR, 11R22.5 18PR, 275/80R22.5 18PR |
| Engine Brand | Cummins |
| Power (kW) | 162 |
| Displacement (mL) | 4500 |
| Crane Tonnage | 8 Ton |
| Crane Brand | XCMG |
| Standard Configuration | Crane: XCMG, Cargo Box |
| Optional Configuration | Optional air conditioning, power steering, hydraulic rear outriggers |
Truck Mounted Crane / Straight Arm Crane Truck / Engineering Lifting Vehicle
The 8T Straight Arm Truck Mounted Crane is built on a Shandong Tairui chassis (BJ1189VFJPK-A01) with a 4×2 drive configuration, ensuring excellent fuel efficiency and maneuverability. The vehicle supports multiple overall length options, including 9000 mm, 8710 mm, 8245 mm, 7780 mm, with a standard width of 2550 mm and height options up to 3850 mm, adapting to different lifting and transport needs.
The vehicle has a gross mass of 18,000 kg and curb weight options of 11,500 kg or 12,000 kg, depending on configuration. Multiple wheelbase options (4200 / 4500 / 4800 / 5000 / 5150 / 6000 mm) are available, allowing flexibility in cargo box length and crane layout.
Powered by a Cummins diesel engine (Model: F4.5NS6B220) with a displacement of 4,500 ml, the engine delivers 162 kW (220 hp) and complies with GB17691-2018 National VI emission standards. The vehicle achieves a maximum speed of 90–100 km/h, ensuring efficient transportation between work sites.

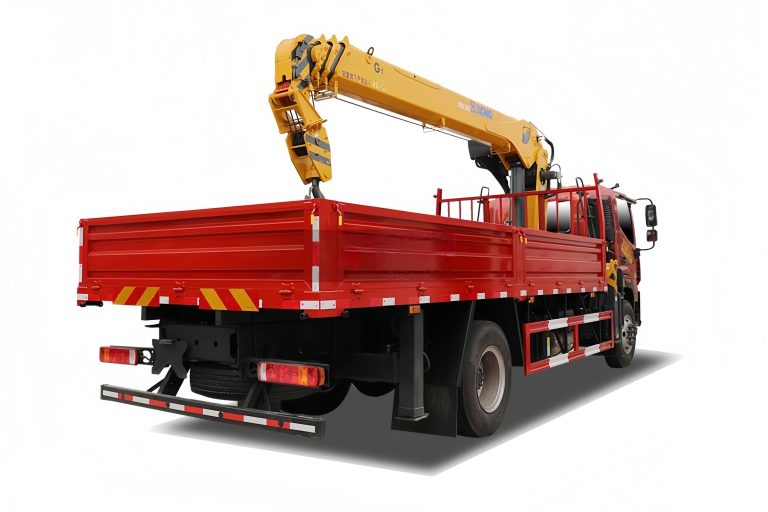

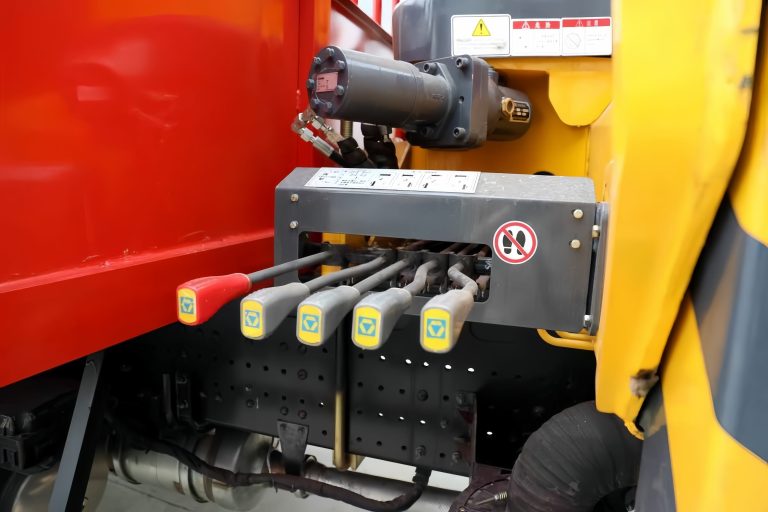

The crane system adopts a straight arm structure with a rated lifting capacity of 8 tons, supplied by XCMG, a leading crane manufacturer. The crane provides strong lifting force, smooth operation, and precise control, making it suitable for material handling, equipment installation, and on-site lifting tasks.
Cargo box length options include 6200, 6100, 5800, 5500, 5200, 5000, and 4450 mm, with corresponding width and height configurations to suit various transport requirements. Rated payload capacities vary by configuration, supporting a wide range of applications.

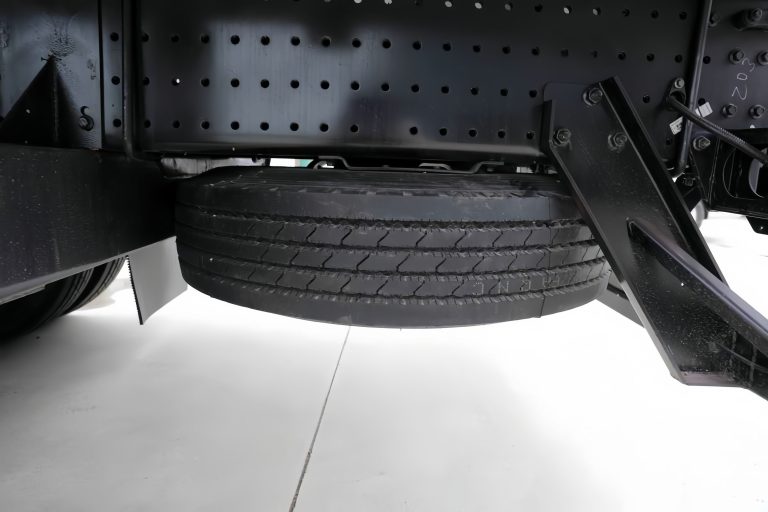

The vehicle is fitted with heavy-duty tires such as 10.00R20 18PR, 11R22.5 18PR, or 275/80R22.5 18PR, ensuring strong load-bearing capacity and stability under lifting conditions.
8-ton XCMG straight arm crane
National VI compliant Cummins diesel engine
Multiple wheelbase and cargo box configurations
Integrated lifting and transport design
Heavy-duty chassis and suspension system
High lifting efficiency with precise control
Flexible configuration for different job requirements
Reliable powertrain with low emissions
Reduced operational costs through multi-function integration
One vehicle for lifting and transportation
Improved on-site efficiency and reduced equipment needs
Compliance with modern emission regulations
Proven components from well-known brands
Cummins National VI engine
XCMG crane system
Shandong Tairui certified chassis platform
Construction material lifting and transport
Municipal engineering projects
Power and telecommunications installation
Equipment loading and unloading
Logistics and warehouse operations
Industrial maintenance and infrastructure projects
This model combines the reliability of a Cummins engine, the lifting performance of an XCMG crane, and the flexibility of multiple chassis configurations. It is an ideal solution for customers seeking a cost-effective, durable, and regulation-compliant truck-mounted crane.
Delivery Mode: Complete Vehicle
Packing: Standard export preparation
Customization: Available (cargo box size, crane layout, optional equipment)
Air conditioning
Power steering

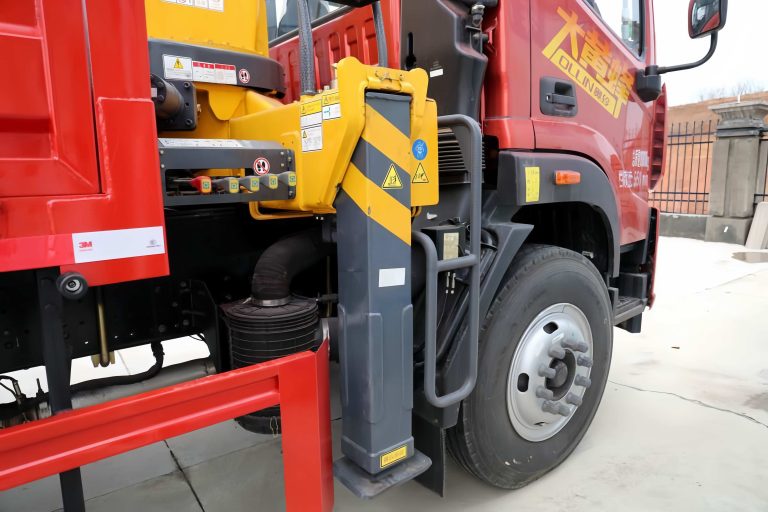

Hydraulic rear outriggers
Q1: What is the maximum lifting capacity of the crane?
The crane has a rated lifting capacity of 8 tons.
Q2: What emission standard does this vehicle meet?
It complies with GB17691-2018 National VI emission standards.
Q3: Can the cargo box length be customized?
Yes, multiple cargo box lengths and configurations are available.
Q4: What crane brand is used?
The crane system is supplied by XCMG.
Q5: Is customization available?
Yes, optional configurations such as air conditioning and hydraulic rear outriggers are supported.
