The A8H Electric Commercial Quadricycle redefines urban logistics with brute-strength performance and unmatched payload capacity. Engineered for heavy-duty operations, its semi-integral body houses a powerhouse 72V5000W motor, hurtling 1,183 kg cargo at 52 km/h while conquering 25% gradients. Certified to EEC/COC/L7e-CU standards and packed with driver-centric tech (power windows, heater, camera), the A8H masters last-mile delivery, icy commutes, and rural supply chains – all within a compact 3.56m footprint.
Parameter list
| Model | A8H Electric Commercial Quadricycle |
| Dimensions(mm) | 3559*1227*1669 |
| Body type | semi- integralbody |
| Body structure | 2doors and 1seat |
| Motor | 72V5000W |
| Controller | 72V32tubes |
| Battery(kwh) | 72V120AH |
| Charging time(H) | 6-8h |
| Range per charge/km | ≥90 |
| Loading capacity/kg | 1183kg |
| Front suspension | McPherson suspension |
| Rear suspension | Integrated rear axle |
| Front/rear tire | 135/70R12 |
| Rim | Iron Hub |
| Brake system | firont/reardisc |
| Clhmbing degree (%) | ≥25 |
| Top speed(km/h) | 52km/h |
| Stering Mode | Steering |
| Certificate | EEC/COC/L7e-CU |
| Container Capacity | 4PCS SKD/40HQ |
| Function Device | One Button Start LED lights |
| Reverse Camera/Heater/Electrice window | |
| Application Scenarios | Urban short-distance travel, park commuting, commercial scene distribution, travel in bad weather, suburban tourism, and urban last-mile logistics distribution |
Industrial-Grade Power
72V5000W Motor: Highest torque in class – accelerates fully loaded (1,183 kg) to 52 km/h effortlessly.
Extended Range: 72V120AH battery delivers ≥90 km per charge (6–8 hrs), minimizing downtime.
Heavy-Duty Chassis
Semi-Integral Body: High-strength steel frame balances weight distribution and payload resilience.
Commercial Suspension: McPherson front + integrated rear axle stabilize heavy loads on rough terrain.
Safety Under Load
Oversized Disc Brakes: Reinforced calipers/pads halt 1.2-ton momentum reliably.
All-Weather Grip: 135/70R12 tires on rugged iron hubs endure potholes, rain, or gravel.
Operator-First Tech

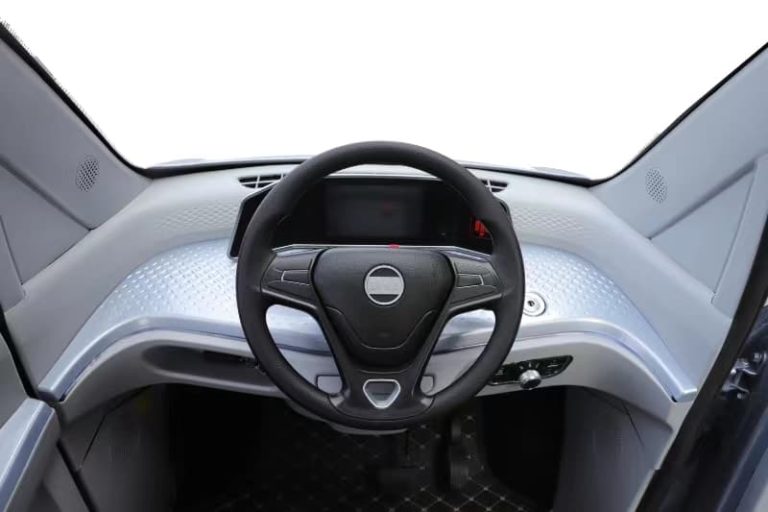

Work-Ready Features: One-button start, LED work lights, rearview camera, heated cabin.
Flexible Cabin: 2-door design with modular cargo/passenger space (adapts to parcels or 1 passenger).
| Feature | A8H Quadricycle | Standard Cargo EVs |
|---|---|---|
| Payload Efficiency | 1,183 kg – 2.5x typical micro-vans | Avg. 400-600 kg capacity |
| Power-to-Weight | 5000W motor sustains power under max load | Motors overheat at 70% capacity |
| Braking Security | Reinforced discs (commercial-grade cooling) | Basic drums fade under heavy loads |
| Certification | Full EEC/COC/L7e-CU compliance | Rarely certified for heavy cargo |
| Operator Comfort | Heated cabin + power windows (unheard of in class) | Spartan, utilitarian cabins |
✅ Key Edge: Only L7e-CU-certified EV merging truck-like payload with van-like driver comfort for brutal urban workflows.
Q: Can it really carry 1,183 kg on steep hills?
→ A: Absolutely. The 5000W motor + 32-tube controller ensures no power drop on 25% grades at max load.
Q: How does semi-integral construction handle heavy cargo?
→ A: High-tensile steel cross-members distribute stress – tested to 1.5x payload without deformation.
Q: Charging logistics for fleet operators?
→ A: Standard 72V charging (6–8 hrs overnight); 4 units fit a 40’HQ container for global deployment.
Q: Maintenance costs vs. diesel vans?
→ A: 60% lower TCO – no oil/filter changes; brake pads last 2x longer due to regenerative braking.
Q: Can the cabin carry passengers?
→ A: Yes! Driver + 1 passenger (or remove seat for 1.2m³ cargo space).
Q: Safety in rain with heavy loads?
→ A: Wide tires + weight-enhanced traction + ABS-like brake modulation prevent hydroplaning.
Body Construction: Robot-welded tubular steel骨架 + impact-absorbing crumple zones.
Drivetrain: Dust-sealed 5000W motor – tested for 10,000 hrs at peak load.
Brake System: Ventilated front discs + oil-cooled rear calipers dissipate heat during descent.
Summary: The A8H isn’t just an EV – it’s a compact freight revolution. With payload dominance, certified safety, and driver-friendly tech, it slashes logistics costs while conquering cities. For operators who measure value in tonnes/km, this is the ultimate ROI machine.
