Sightseeing Electric Vehicle

Sightseeing Vehicle

Shandong Tairui’s AG308 electric sightseeing vehicle can carry 23 people (including the driver), focusing on large – scale passenger transport scenarios such as scenic spots and resorts. With advanced technologies like permanent magnet synchronous water – cooled motors and lithium iron phosphate batteries, it achieves efficient, environmentally – friendly and stable operation. It is a powerful tool for large – team reception and passenger evacuation in high – flow scenic spots.

Chat Now

Product Parameters

Parameters：

Model	AG308
Number of passengers	23 people(including driver)
Lengthwidthheight	627020002300(mm)
Wheelbase	3400(mm)
Wheel base (front/rear)	1610/1550(mm)
Minimum ground clearance	130(mm)
Maintenance weight	2100(KG)

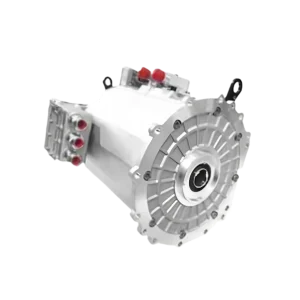

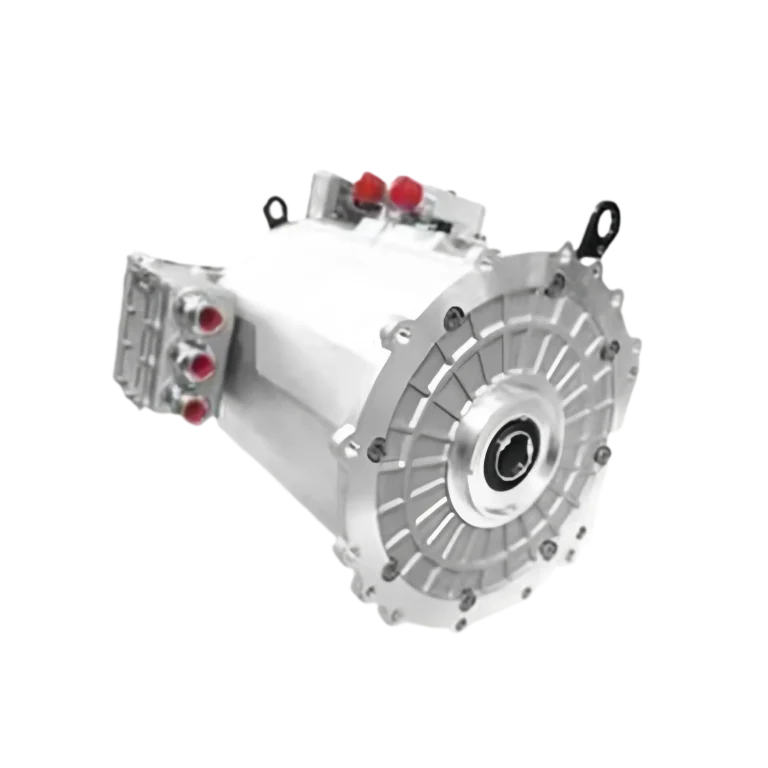

Electric machine	Permanent magnet synchronous 35Kw water-cooled motor Permanent magnet synchronous 45Kw water-cooled motor

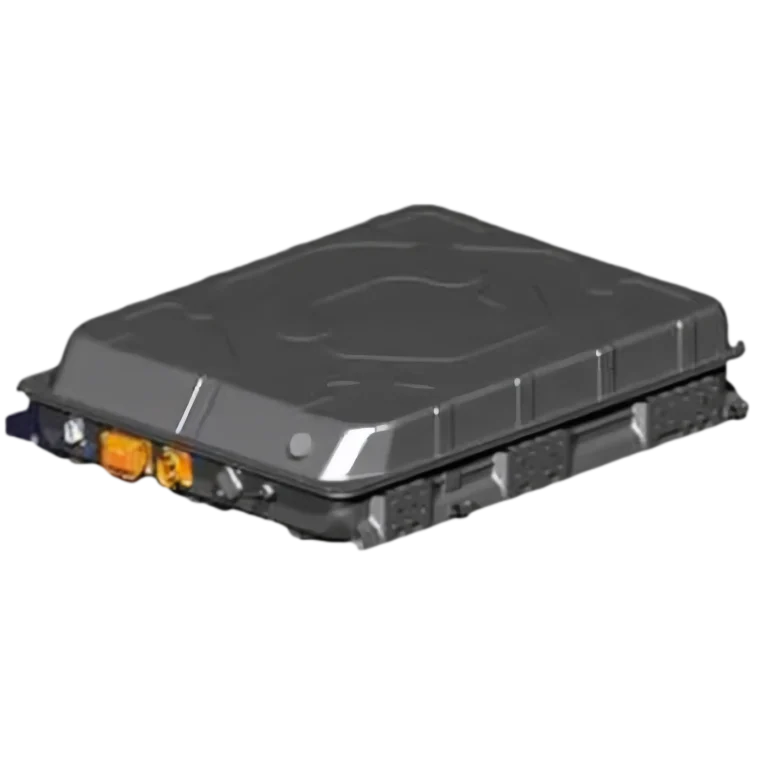

Battery	Byd 45kwh lithium iron phosphate battery Ningde Times 57kwh lithium iron phosphate battery

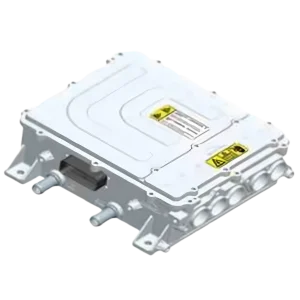

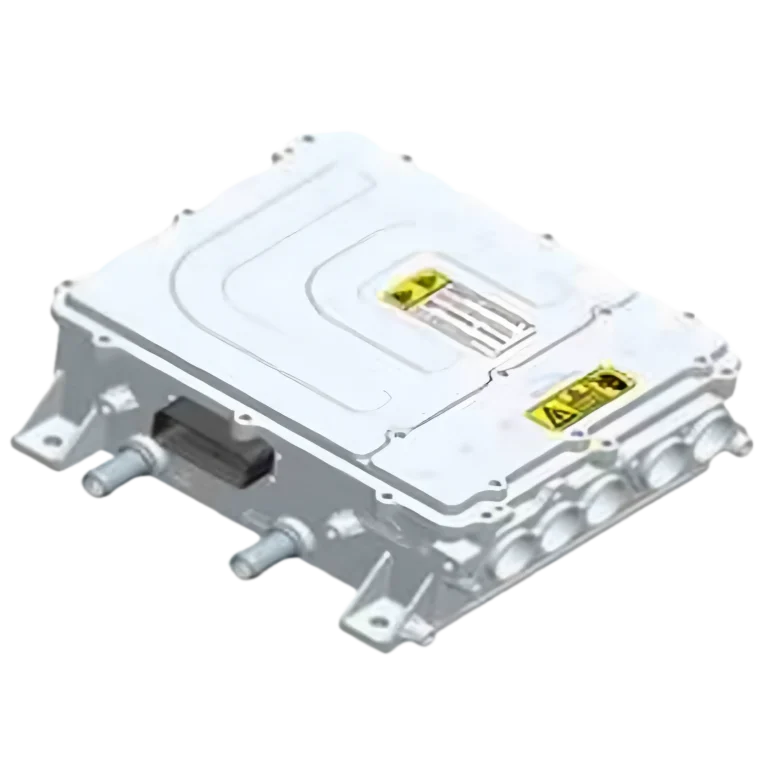

Controller	High efficiency, energy saving and high performance four-in-one vehicle controller
Voltage	350V
Suspension system	Front/rear longitudinal plate spring + hydraulic damping damping for passenger class
Brake system	Dual circuit hydraulic brake, front disc and rear drum, with electronic vacuum power
Lights and signals	Car combination headlights (including LED water turn signal, position light, with lens), taillights (including turn signal, position light, reverse light)
Fframe	120+50 double longitudinal beam welded frame, high strength, stronger and safer, The anticorrosion standard reaches the automobile level by using automobile coating electrophoresis process
Body	High strength steel skeleton + FRP covering, SMC process FRP
Ceiling	Aluminum profile skeleton + transparent tempered glass
Flooring	embossed aluminum flooring
Seat	Driver’s independent seat, passenger bus seat
Front windshield	Automobile laminated tempered glass
Protective measure	Left stainless steel guardrail, right reverse armrest, two-point safety belt
Appearance	LCD combination meter (speed, current, power, vehicle fault, etc.)
Battery management system	BMS Remote battery management system
Range	≥200km (under standard working conditions ≥380 (under standard conditions)

Application Scenarios: Specifically designed for large-scale passenger transport in scenic spots, resorts, and similar high-flow areas. It serves as a powerful solution for group reception and passenger evacuation, leveraging advanced technologies like permanent magnet synchronous water-cooled motors and lithium iron phosphate batteries to ensure efficient, eco-friendly, and stable operation.
Passenger Capacity: 23 people (including the driver)

Core Specifications:

Dimensions: 627020002300 mm
Motor: 35Kw/45Kw permanent magnet synchronous water-cooled motor
Battery: BYD 45kWh or Ningde Times 57kWh lithium iron phosphate battery
Range: ≥200km (standard working conditions); ≥380km (specific standard conditions)
Key Systems: Dual-circuit hydraulic braking (front disc/rear drum) with electronic vacuum assist, front/rear longitudinal plate spring suspension + hydraulic damping, BMS remote battery management system

Selling Points

Ultra-Large Capacity for Efficient Evacuation: With a 23-person capacity, it optimizes transport efficiency in high-flow scenic areas, reducing tourist waiting times and enabling rapid group mobility.
Advanced Power with Strong Endurance: Equipped with high-performance 35Kw/45Kw water-cooled motors and lithium iron phosphate batteries, it delivers robust power and extended ranges (≥200km standard; ≥380km under specific conditions).
Safe, Reliable, and Durable: Features dual-circuit hydraulic brakes, a high-strength steel skeleton + FRP body, and automotive-level anti-corrosion treatment, ensuring long-term stability and safety.
Intelligent Management for Easy O&M: LCD combination meters and BMS remote monitoring enable real-time vehicle status tracking, simplifying operation, maintenance, and fault diagnosis.

Differentiated Advantages

Leading Technological Integration: Combines permanent magnet synchronous motors, lithium iron phosphate batteries, and BMS systems, with power and battery management technologies at the industry forefront, outperforming conventional models in performance and intelligence.
Durable Structural Design: The steel skeleton + FRP body and aluminum profile + tempered glass ceiling, combined with automotive-level anti-corrosion and SMC processes, minimize long-term maintenance costs.
Tailored for High-Flow Scenarios: The 23-person capacity is optimized for “centralized passenger evacuation,” reducing transport frequency and enhancing overall operational efficiency compared to smaller models.
Upgraded Safety Features: Dual-circuit hydraulic brakes with electronic vacuum assist, paired with a high-strength body, ensure responsive braking and stable handling under complex road conditions and full loads.

F&Q

Q: How long does a full charge take for the AG308?
- A: Charging time varies by charger and battery type. Using a standard charger, it typically takes 5–8 hours. Use a dedicated charger and follow guidelines to protect the battery.
Q: Can it handle bumpy roads in scenic areas?
- A: Yes. The front/rear longitudinal leaf spring suspension with hydraulic damping, combined with a high-strength body, provides excellent shock absorption and stability on rough terrain, ensuring passenger comfort and safety.
Q: How to monitor battery status in real time?
- A: Check via the vehicle’s LCD combination meter (displays speed, current, power, etc.) or the BMS remote management system. Regular professional inspections are also recommended.
Q: Are maintenance costs high during large-scale operations?
- A: No. The durable body (automotive-level anti-corrosion, SMC process) and intelligent fault diagnosis system keep maintenance costs manageable when following daily maintenance guidelines.
