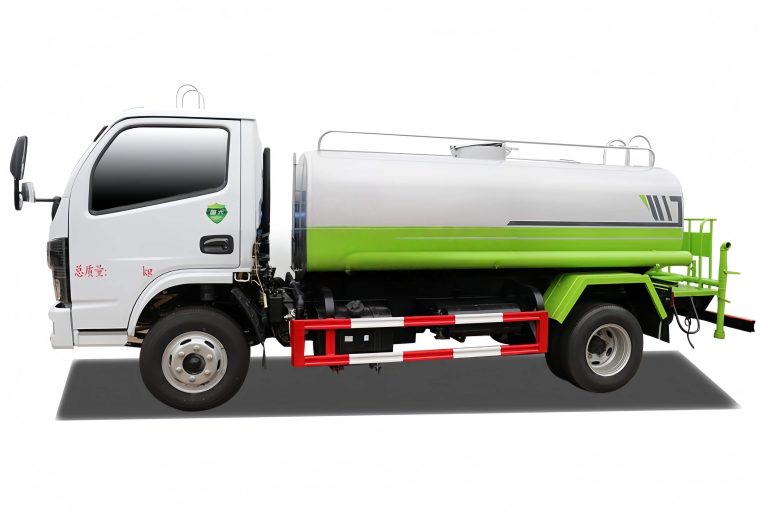

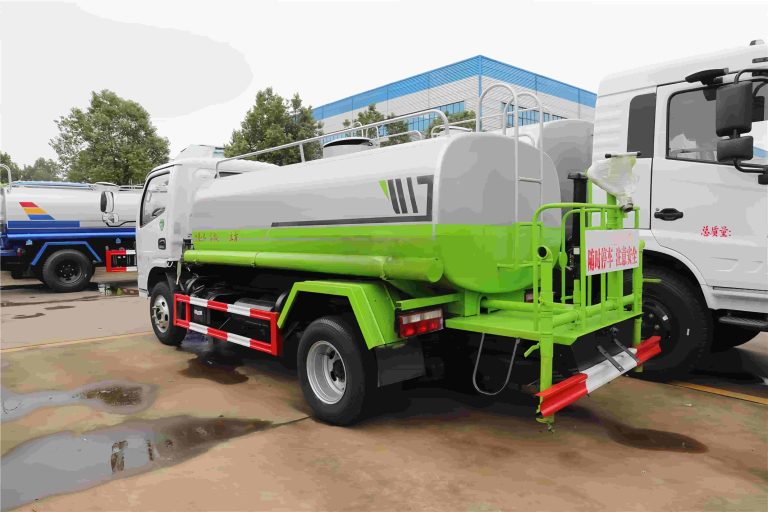

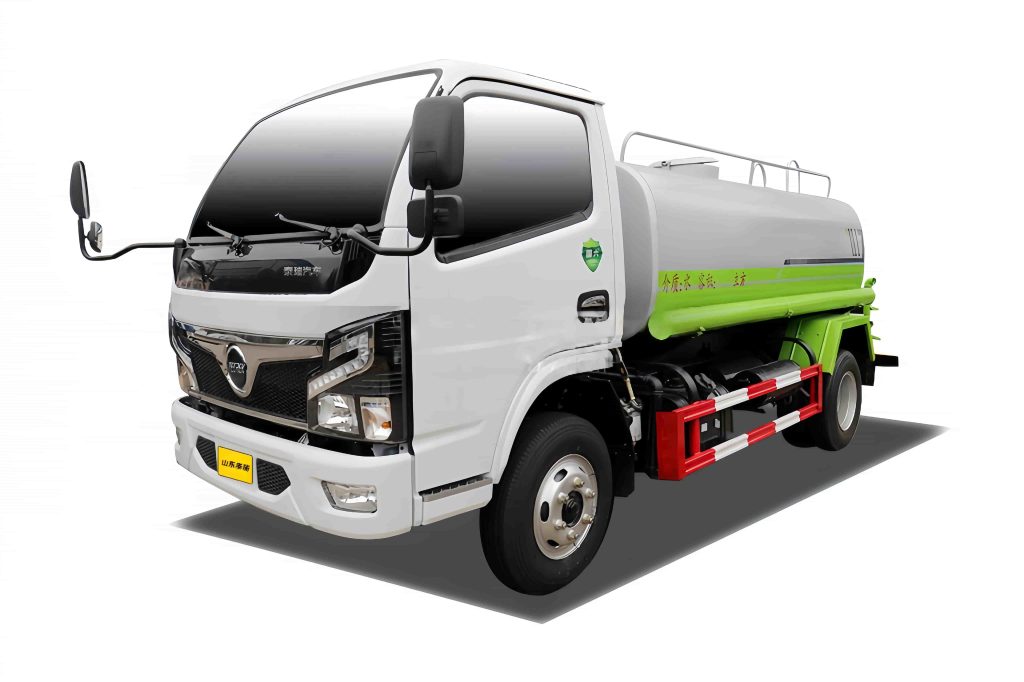

The 4.04m³ High Pressure Water Sprinkler Truck is a compact and efficient road cleaning and irrigation vehicle designed for municipal environmental sanitation, landscaping irrigation, dust control, and small-scale construction sites. Featuring a high-pressure industrial pump, multifunction spraying system, self-suction filling capability, and optional disinfectant spraying system, it is ideal for urban communities, commercial facilities, and industrial areas.
The 4.04 Cubic Meter High-Pressure Water Sprinkler Truck uses reinforced steel tank construction and a high-performance spraying system to deliver precise cleaning and irrigation work in narrow and busy areas. Powered by a 102 kW diesel engine, this water truck offers reliable operation and low fuel consumption, making it suitable for tight city streets or industrial complexes. It supports front flushing, rear spraying, side nozzles, and a top-mounted high-pressure cannon.
| Vehicle Name | High Pressure Water Sprinkler Truck |
| Overall Dimensions (mm) | 5990*2000*2380 |
| Gross Mass (kg) | 7360 |
| Curb Weight (kg) | 3375 |
| Fuel Type | Diesel |
| Wheelbase (mm) | 3308 |
| Chassis Brand/Model | Shandong Tairui/EQ |
| Power/Horsepower (kW/ps) | 93/126 |
| Tank Volume (m³) | 4.04 |
| Tank Dimensions (mm) | 3400*1600*1100 |
| Rated Mass (kg) | 3855 |
| Maximum Speed (km/h) | 110 |
| Emission Standard | China VI |

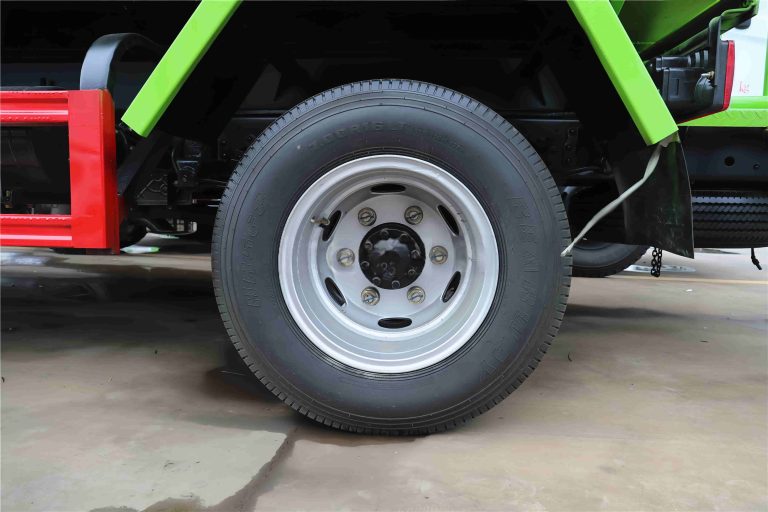

| Tire Specification | 7.00R16 |
| Engine Brand/Model | Yunnei/D40TCIF1 |
| Displacement (mL) | 1999 |
| Standard Configuration | The tank is made of 4mm thick Wugang high-quality steel plate, equipped with water pump, high-pressure water cannon, working platform, power take-off, front flush, rear spray, universal nozzle, self-flow valve, filter, distribution valve, sprinkler head, with self-priming and self-discharging functions. |
| Optional Configuration | Can be equipped with chemical dosing disc, chemical pump, anti-corrosion and anti-rust inside the tank, multi-directional water inlet and outlet joints, solenoid valves, pneumatic valves and other advanced facilities to meet different user needs. |
✔ Compact Size for Narrow City Roads
Short wheelbase + small turning radius, easy to operate in communities, schools, factories, airports, and downtown areas.
✔ High-Pressure Jet Cleaning System
Ideal for removing mud, oil stains, and accumulated dust on roads, parking lots, bridges, and markets.
✔ Efficient Water Consumption + Quick Refilling
Low water usage with strong pressure; supports self-suction from rivers, ponds, or hydrants.
✔ Multi-Functional Operation System
Supports irrigation, road flushing, high-pressure cleaning, dust suppression, and disinfectant spraying.
🔹 Industrial-Grade High-Pressure Pump Included Standard
Many brands offer low-pressure pumps; ours comes with high-pressure cleaning as a base configuration.
🔹 Can Spray Disinfectant or Chemical Agents
Optional chemical dosing system for sterilization or industrial cleaning.
🔹 Energy-Saving and Low Maintenance Diesel Engine
Widely used internationally, spare parts easily accessible, lower long-term maintenance cost.
🔹 Optimized Design for Overseas Urban Projects
Compact, lighter weight, ideal for countries with narrow city streets or residential application.
Tank: 4mm high-strength steel (anti-corrosion treatment)
Pipelines & Valves: Anti-rust coated steel / optional stainless steel
Pump: High-pressure industrial water pump
Spray Nozzles: Adjustable directional nozzles
Smooth anti-corrosion paint
Available in green, blue, white, yellow sanitation colors
Equipped with safety reflectors and rear working platform
Front flushing for road sweeping
Rear and side spraying for irrigation & dust suppression
High-pressure cannon jet with 18–28m range
Self-priming & self-discharging pump
Optional disinfectant / chemical spraying system

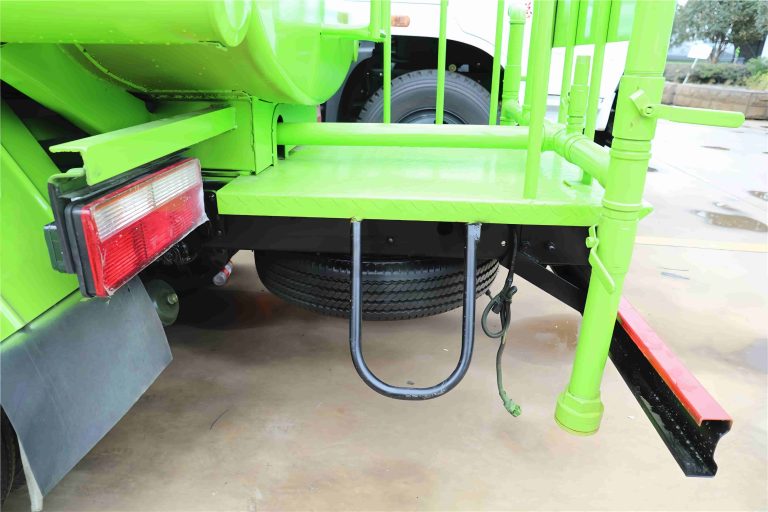

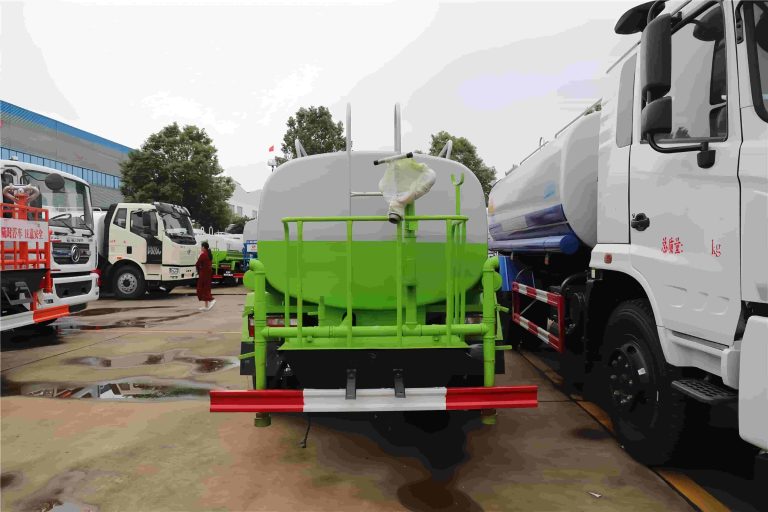

Operator platform at rear with control valves
| Optional Upgrades |
|---|
| Stainless steel tank |
| Disinfection/chemical dosing system |
| Pneumatic valves / electric remote control |
| Fire hydrant connection |
| LED working lights |
| Pressure gauge + water level indicator |
ISO9001 production standard
100% tank hydraulic & pressure test
Pump performance inspection before shipping
Anti-corrosion inner tank coating
1-year warranty for major components
Remote guidance + video technical support
Fast spare parts supply worldwide
English operation manual provided
✔ Urban sanitation
✔ Residential community cleaning
✔ Landscaping irrigation
✔ Factory & airport sanitation
✔ Dust control in construction areas
✔ Public disinfectant spraying
T/T (30% deposit + 70% before delivery)
LC at sight
Trade assurance services available
Q1: Can this truck use river water?
Yes, it supports self-suction from ponds, rivers, and water tanks.
Q2: Is the high-pressure pump suitable for oil removal?
Yes, it can remove mud, oil stains, and hardened dirt on roads and floors.
Q3: Can I choose stainless steel?
Yes, 304 or 316 stainless steel tanks are optional.
Q4: How fast can it be delivered?
Typically within 15–30 days depending on configuration.
