This Euro IV light-duty hauler introduces a new paradigm in compact freight solutions, combining regulatory compliance with operational versatility. Powered by the 4J28TC turbocharged diesel engine, our urban logistics specialist delivers an optimal balance of performance and economy for today’s demanding delivery environments.
Parameter
| Model | BJ5065VDJD4-F1 |
| Outside Dimension | 5430×2060×2330 |
| Cargo Body Dimension | 3610×1960×400 |
| Wheel Base | 2800 |
| Cabin Type | L7,1880mm, Single |
| Chassis Width | 110/180/140×60/65×4.5 |
| Curb Weight | 2500 |
| Load Capacity | 4000 |
| Total Weight | 6500 |
| Engine | Vertical,In-line,Four-stroke,Water-cool,Turbo intercooler,VE pump |
| Engine Model | 4J28TC/81kw |
| Fuel type | Diesel |
| Max. Power(kw/r.p.m) | 81kw |
| Displacement (cc) | 2771 |
| Emission standard | Euro IV |
| Gear position | 135/24R |
| Front axle | Unitary Forging，I-shape |
| Rear axle | Unitary Pipa type |
| Differential Ratio | 5.375 |
| Driving brake | Hydraulic double-pipeline, Front /Rear Drum |
| Parking brake | Drum middle brake |
| Leaf Spring Quantity | 3+Shock absorber |
| Leaf Spring Quantity | 5+Shock absorber |
| Tires | 6.50R16*7 |
• 81kW turbo-intercooled diesel provides immediate throttle response
• 2.8L displacement engine optimized for frequent stop-start operations
• VE pump fuel system ensures consistent power delivery
• 5.375 axle ratio enhances low-speed torque for urban gradients
• 3610mm cargo bed accommodates Euro-standard pallets
• Reinforced 3+5 leaf spring configuration
• Low 2330mm overall height for unrestricted access
• 6.50R16 commercial tires with reinforced sidewalls

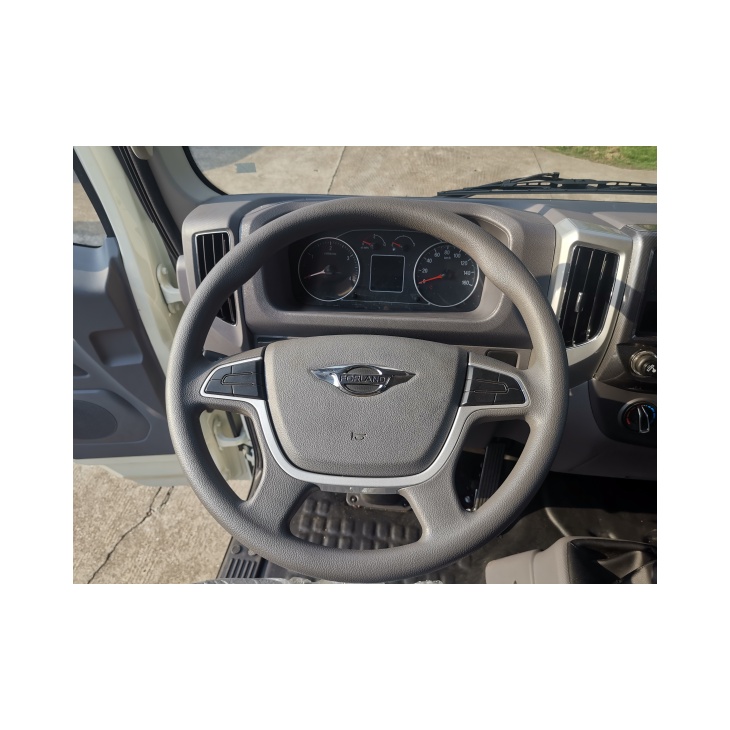

• 1880mm wide cab with ergonomic controls
• Excellent 10.6m turning circle
• Hydraulic brakes with progressive pedal feel
• Minimal 5.4m length fits urban loading zones
Parcel shelving system
Non-slip cargo flooring
12V charging ports
High-visibility markings
Ventilated side panels
Easy-clean surfaces
Moisture-resistant electricals
Load-securing anchors
Lockable tool storage
Auxiliary work lighting
Drop-side panels
240V power inverter prep
| Feature | Operational Advantage |
|---|---|
| Euro IV compliance | Future-proof operation |
| 4000kg payload | True commercial capacity |
| 2800mm wheelbase | Agile yet stable handling |
| Hydraulic brakes | Consistent stopping power |
• 18% better fuel efficiency than previous generation
• 50,000km service intervals
• 3-year drivetrain coverage
• Nationwide service network
✓ Right-sized dimensions for urban access
✓ Proven diesel economy with modern emissions
✓ Configurable cargo solutions for diverse needs
✓ Low TCO through extended component life
This light-duty performer represents the smart choice for operators who value efficiency over brute strength. Whether navigating narrow streets or handling multiple daily deliveries, this Euro IV compliant workhorse delivers where it counts most – on the bottom line.
For a personalized demonstration of how this compact hauler can streamline your operations, contact our commercial vehicle specialists today.
