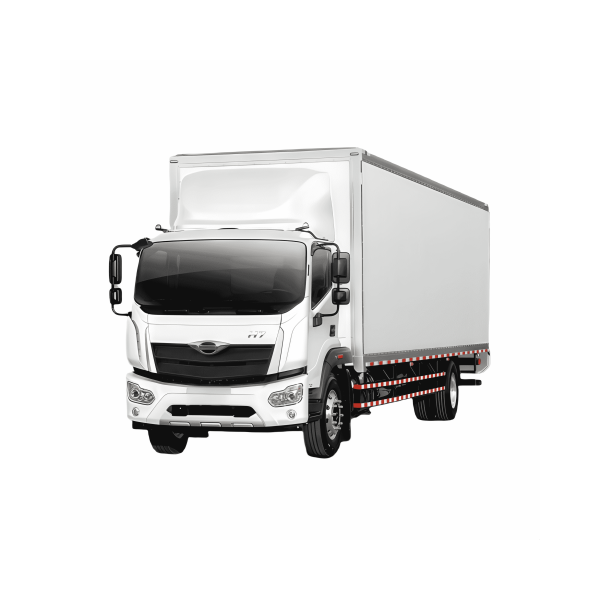

In the vast landscape of commercial transportation, the Medium truck – 15ton – Yuchai diesel engine – Euro II (model BJ5226VMPHG – ) stands as a robust and versatile solution. This truck is not just a vehicle; it’s a reliable partner for businesses across multiple industries, offering the power, durability, and adaptability needed to tackle a wide range of transportation challenges.

Product Parameters

Parameter

Model BJ5226VMPHG-
Outside Dimension 8225x2460x2820
Cargo Body Dimension __
Wheel Base 4800
Cabin Type H7,2200mm,Single
Chassis Width 250*75*6+4
Curb Weight 7000
Load Capacity 15000
Total Weight 22000
Engine Vertical,In-line,Four-stroke,Water-cool,Turbo intercooler
Engine Model YC6A240-33
Fuel type Diesel
Max. Power(kw/r.p.m) 177kw
Displacement (cc) 4800
Emission standard Euro II
Gear position 135/24R
Front axle Unitary Forging,I-shape
Rear axle Unitary Pipa type
Differential Ratio 4.33
Driving brake Separate double loops,
Front & Rear air brake
Parking brake Automatically air-cut brake
Leaf Spring Quantity 10+Shock absorber
Leaf Spring Quantity 8+Shock absorber
Tires 10.00R20*7

Key Features and Their Impact

1. Engine and Performance

At the core of this medium truck is the Yuchai diesel engine (model YC6A240 – 33). With a max power of 177kw and a displacement of 4800cc, this vertical, in – line, four – stroke, water – cool, turbo intercooler engine delivers exceptional performance. It provides the necessary torque to handle the truck’s 15000kg load capacity with ease. Whether it’s transporting heavy industrial equipment or bulk commodities, the Medium truck – 15ton – Yuchai diesel engine – Euro II can power through various terrains, from steep mountain roads to flat highways.

2. Dimensions and Capacity

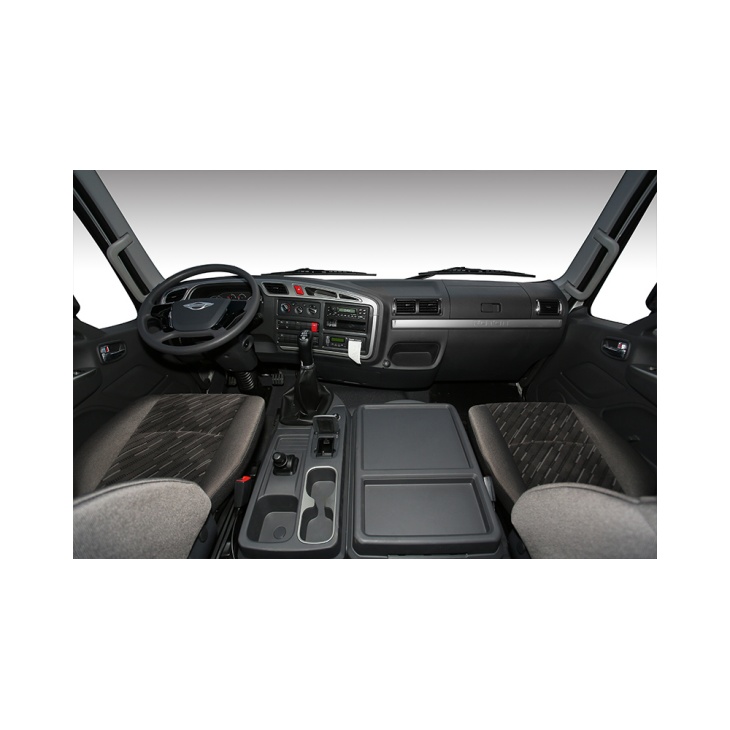

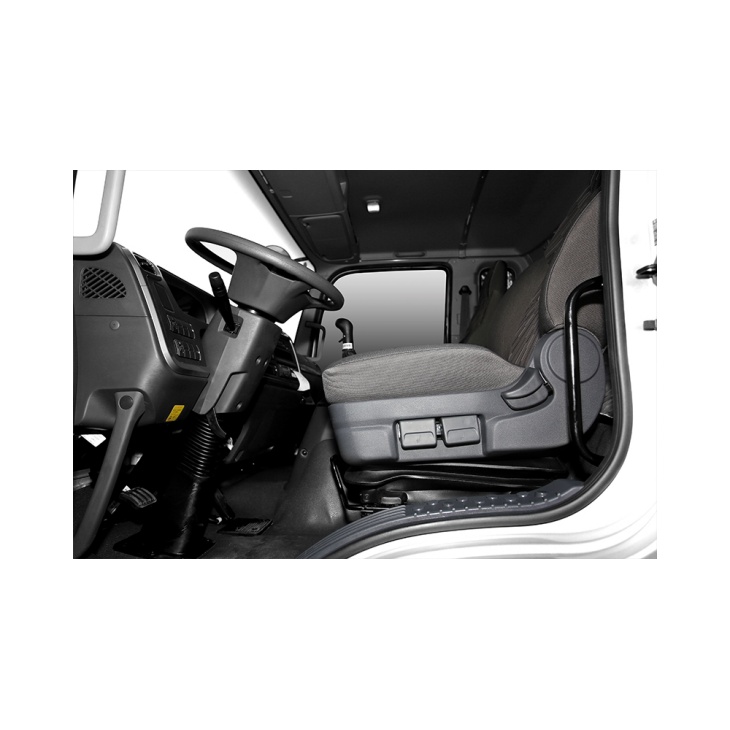

The truck boasts an outside dimension of 8225x2460x2820 and a wheelbase of 4800mm. These dimensions, combined with a curb weight of 7000kg and a total weight of 22000kg, make it an ideal choice for medium – to – large – scale transportation tasks. The cabin type (H7, 2200mm, Single) offers a comfortable and spacious environment for the driver, ensuring long – haul journeys can be completed without excessive fatigue.

3. Braking and Suspension

Safety is a top priority, and this truck delivers with its advanced braking and suspension systems. The driving brake features separate double loops, front & rear air brakes, providing reliable and responsive stopping power even when carrying heavy loads. The parking brake is an automatically air – cut brake, adding an extra layer of security when the truck is parked. The leaf spring suspension, with 10 + Shock absorber at the front and 8 + Shock absorber at the rear, ensures a smooth ride, reducing the impact of bumps and vibrations on both the cargo and the driver.

Application Scenarios

1. Heavy – Duty Industrial Freight

In the industrial sector, the Medium truck – 15ton – Yuchai diesel engine – Euro II is a workhorse for transporting heavy machinery parts, industrial raw materials, and finished products. For example, in a manufacturing plant, it can carry large – sized metal components from the production line to the assembly area. In the mining industry, it can transport mining equipment and extracted ores to processing facilities. Its high load capacity and powerful engine make it suitable for these demanding industrial freight tasks.

2. Construction Material and Equipment Transport

Construction companies can rely on this medium truck to transport building materials such as steel beams, concrete slabs, and bricks to construction sites. It can also carry heavy construction equipment like excavators and bulldozers (when properly secured). The truck’s ability to navigate through construction zones, combined with its load – bearing capabilities, ensures that construction projects stay on schedule by having the necessary materials and equipment delivered on time.

3. Agricultural Product and Machinery Hauling

In the agricultural industry, the truck serves multiple purposes. It can transport large quantities of agricultural products like grains, fruits, and vegetables from farms to distribution centers or markets. Additionally, it can haul agricultural machinery such as tractors and harvesters between different farms or to maintenance facilities. The truck’s durability and ability to handle rural roads make it a valuable asset for farmers and agricultural businesses.

4. Logistics and Distribution for Wholesale Markets

Wholesale markets deal with large volumes of goods that need to be transported efficiently. The Medium truck – 15ton – Yuchai diesel engine – Euro II can be used to transport goods from wholesalers to retailers across different regions. Its capacity to carry a significant amount of cargo in one trip helps reduce transportation costs and improve delivery times, making it an essential part of the logistics and distribution network in wholesale markets.

Environmental Compliance and Cost – Effectiveness

Complying with the Euro II emission standard, this truck balances environmental responsibility with cost – effectiveness. The Yuchai diesel engine is designed to be fuel – efficient, which helps businesses save on fuel costs over time. While meeting emission requirements, it also allows for operation in various regions without the need for expensive upgrades to meet stricter emission norms immediately.

Conclusion

The Medium truck – 15ton – Yuchai diesel engine – Euro II is a versatile and powerful medium truck that caters to the diverse needs of multiple industries. Its robust engine, large capacity, advanced safety features, and adaptability to different application scenarios make it a valuable investment for businesses looking to enhance their transportation capabilities. Whether it’s powering through industrial freight, supporting construction projects, aiding in agricultural operations, or streamlining logistics in wholesale markets, this truck proves to be a reliable and efficient workhorse. By choosing this medium truck, businesses can ensure that their transportation operations are not only productive but also sustainable in the long run.
