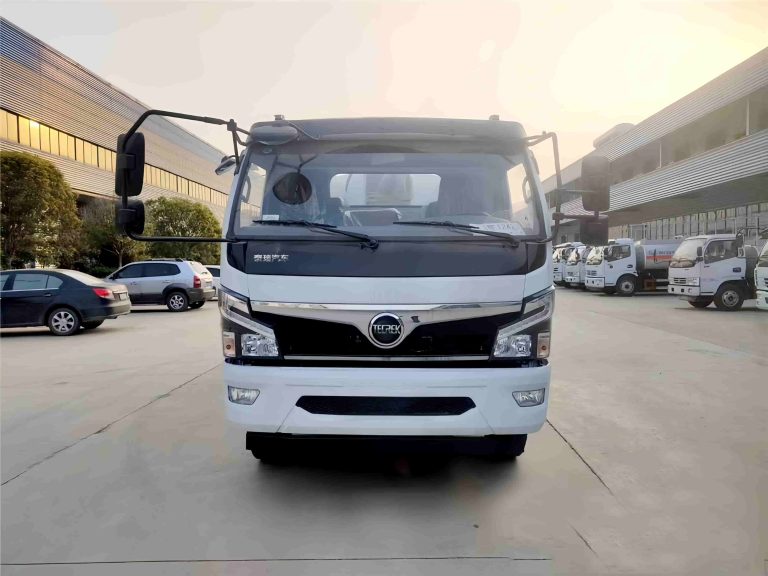

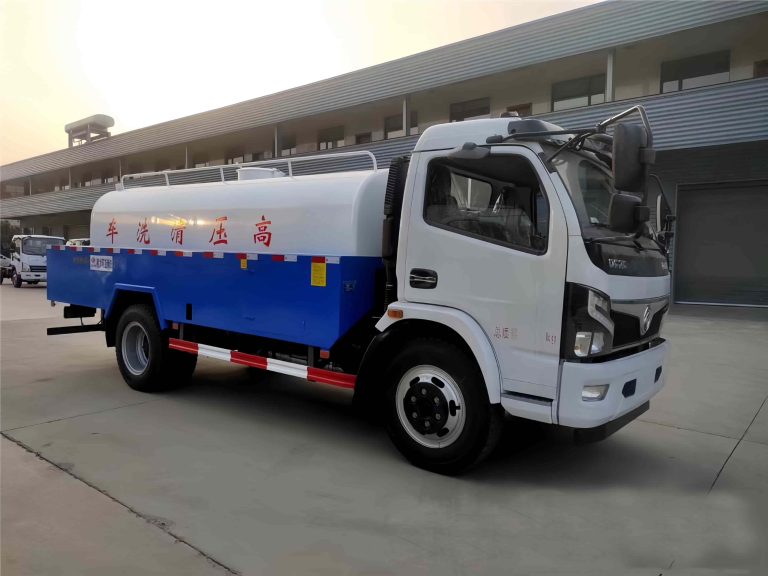

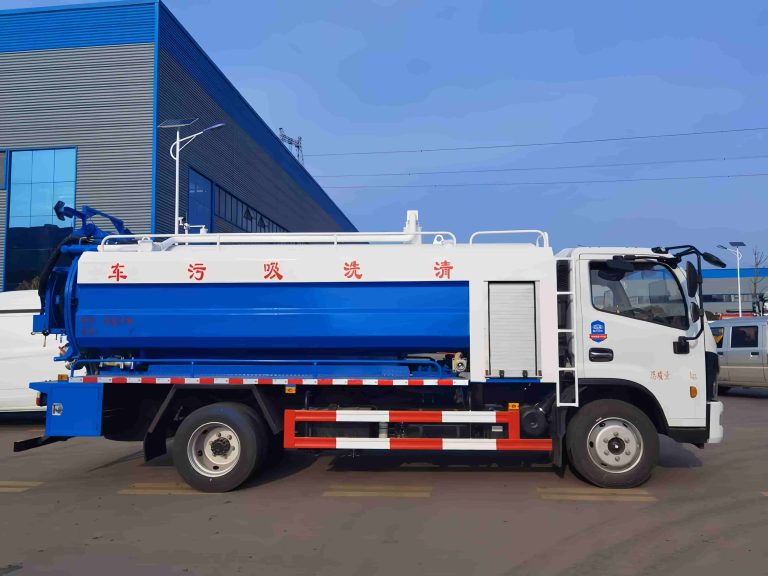

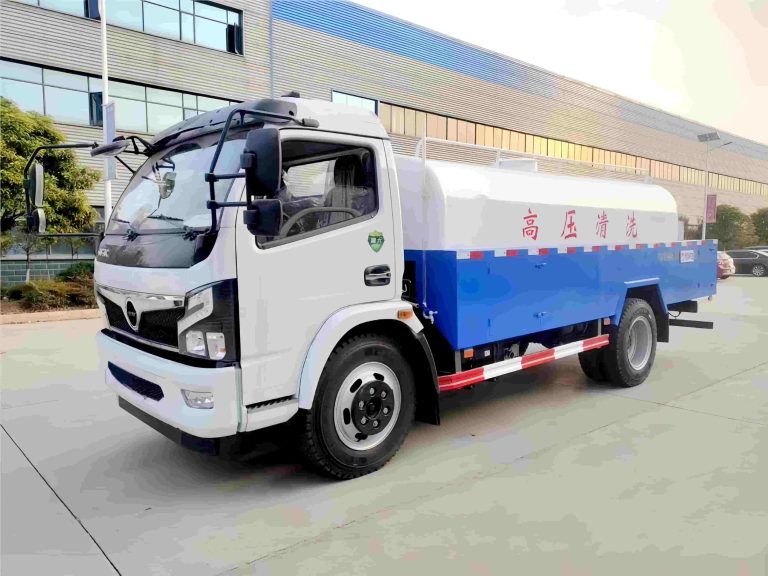

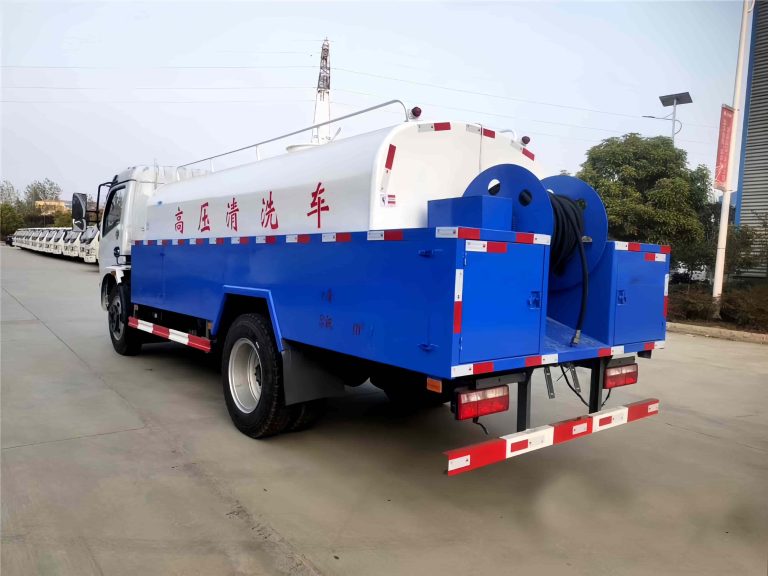

The 6.69m³ Water Sprinkler Truck is a multi-purpose road cleaning and irrigation vehicle designed for municipal sanitation, landscaping maintenance, dust suppression, and construction site cleaning. Featuring a reinforced water tank, adjustable pressurized spraying system, and optional disinfectant sprayer, this mid-size vehicle offers strong operational flexibility for urban roads, industrial parks, residential communities, and public facilities.
The National VI Water Sprinkler Truck uses a strong diesel-powered drive system combined with an efficient pump and a reinforced anti-corrosion tank. Designed to operate in medium-sized city streets and industrial roads, it supports both low-pressure spraying and long-range water cannon functions. Its ideal tank capacity enhances work efficiency and ensures longer operating cycles for large property zones, city streets, or parks.
| Overall Dimensions (mm) | 7150×2180×2410, 2535 |
| Gross Vehicle Mass (kg) | 11995 |
| Curb Weight (kg) | 5420 |
| Axle Load (kg) | 4350/7645 |
| Maximum Speed (km/h) | 103 |
| Fuel Type | Diesel |
| Chassis Model | EQ1125SJ8CDC |
| Number of Axles | 2 |
| Wheelbase (mm) | 3800, 3950, 4050, 4400, 3600 |
| Number of Tires | 6 |
| Approach Angle/Departure Angle | 21°/14° |
| Engine Model | Cummins D4.0NS6B170 |
| Tank Volume (m³) | 6.69 |
| Rated Load Capacity (kg) | 6380 |
| Front Row Passenger Capacity (Persons) | 3 |
| Environmental Compliance | Yes |
| Emission Standard | National VI |
| Chassis Brand | Shandong Tairui |
| Front Track (mm) | 1745/1802 |
| Rear Track (mm) | 1630/1650 |
| Tire Specification | 245/70R19.5, 8.25R20 |
| Front Overhang/Rear Overhang (mm) | 1130/2220 |
| Power (KW) | 125/170 |
| Displacement (mL) | 4000 |

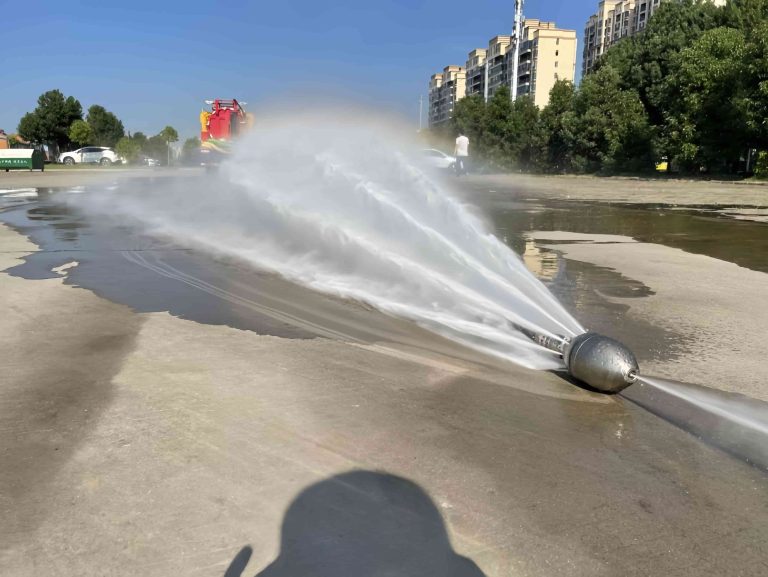

| Others | This vehicle uses a power take-off to drive the high-pressure pump. The high-pressure pump converts ordinary water into high-pressure, low-flow water, which is then delivered to the high-pressure pipeline. The water reaches the high-pressure nozzle with certain energy to perform cleaning work. Medium: Water Effective tank volume: 6.69 cubic meters Overall dimensions of the tank (Length × Width × Height, mm): 4350 × 1800 × 1300 Protective material: Q23** carbon steel Connection method: The left and right sides are connected by welding; the rear lower protection is connected by welding Rear protection cross-sectional dimensions (mm): **× 50 Rear protection height from the ground (mm): 400 ABS model/manufacturer: Model: ABS/ASR-24V-4S/4M |
✔ Ideal Size for Urban & Industrial Use
Balanced size + large tank capacity = fewer refills + higher working efficiency.
✔ Multi-Mode Spraying System
Front flushing, rear sprinkling, side spray nozzles, and 18–35m long-range cannon for irrigation or dust suppression.
✔ Self-Priming Water Filling
Saves time and resources by using rivers, shallow ponds, or external water tanks.
✔ Supports Chemical or Disinfectant Spraying
Optional dosing system for agriculture, industrial cleaning, or public sanitation sterilization.
🔹 Large Tank with Medium-Sized Chassis
More efficient than compact trucks but still flexible in city traffic.
🔹 One-Person Operation With Rear Controls
Simple rear platform valves for easy handling during work.
🔹 Optional Stainless Steel Tank for Corrosion Control
Suitable for coastal areas, industrial chemical zones, and disinfectant usage.
🔹 Designed for Overseas Urban Expansion Projects
Recommended for Africa, Middle East, Southeast Asia municipal programs.
Tank: 4mm reinforced carbon steel (optional 304/316 stainless steel)
Pump: Heavy-duty irrigation and flushing pump
Pipes & Valves: Anti-rust steel, optional stainless steel upgrade

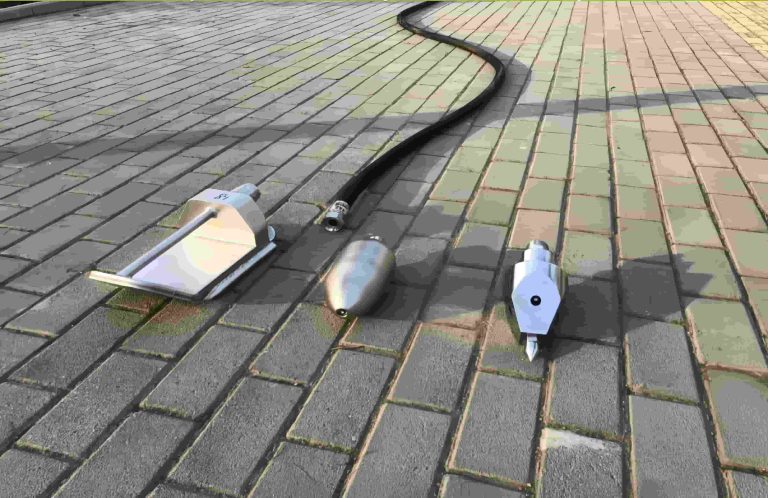

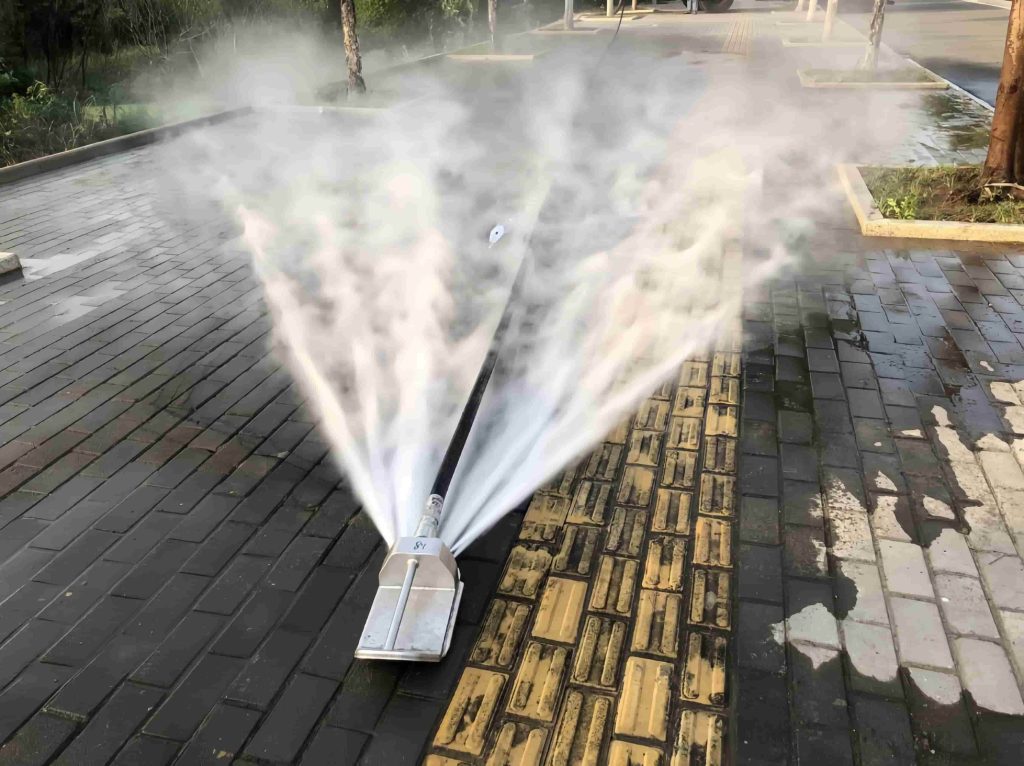

Nozzles: Adjustable directional nozzles suitable for various spray angles
Anti-corrosion paint with weatherproof coating
Sanitation standard colors: White, Green, Blue, Yellow
Safety lights, reflectors & working platform included
Front high-pressure flushing system
Rear fan-type sprinkling system
Side sprinkler for road edges and plants
Top-mounted cannon (18–35m range)
Self-priming and self-discharging pump unit
Optional disinfectant spraying system

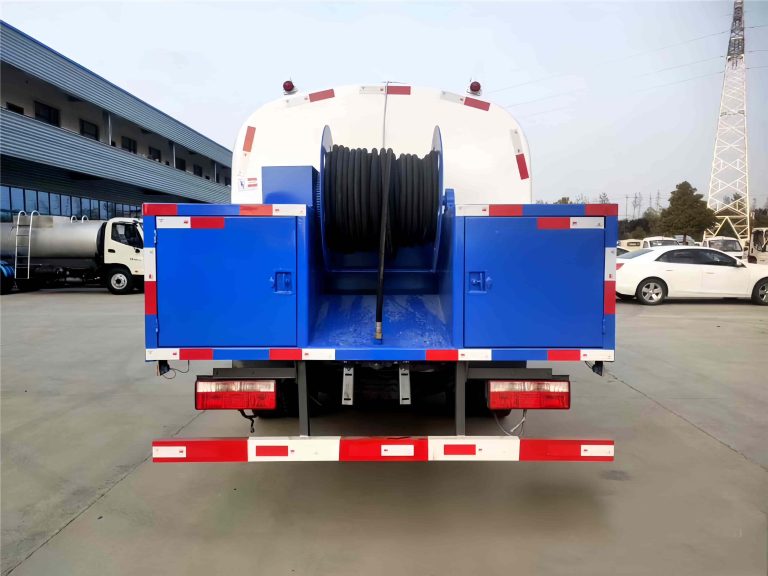

Rear operator control panel + ladder access
| Custom Options |
|---|
| Stainless steel tank |
| Disinfectant/chemical dosing system |
| Remote electric valve control |
| Fire hydrant connection |
| Pressure gauge + LCD water level |
| LED night illumination |
| Anti-corrosion inner coating |
ISO9001 international production standard
Full pressure test for all tanks
Pump inspection before shipping
Anti-corrosion multi-layer coating, UV-resistant
1-year warranty for major systems
Online training and remote video support
Global spare parts supply
English manuals included
✔ Municipal sanitation system
✔ Industrial park cleaning
✔ Landscaping irrigation & watering
✔ Construction site dust suppression
✔ Street disinfectant spraying
✔ Agricultural and commercial usage
T/T down payment + balance before delivery
LC at sight available
Trade assurance supported
Q1: Can the spraying system cover highways?
Yes, the cannon can reach 18–35m distance, suitable for wide roads.
Q2: What if I need corrosion-proof?
We offer 304 or 316 stainless steel tanks and chemical-resistant lining.
Q3: Can we install brand-specific pumps?
Yes, customer-specified pump brands are acceptable.
Q4: What’s the delivery lead time?
15–35 days depending on configuration and customization.
