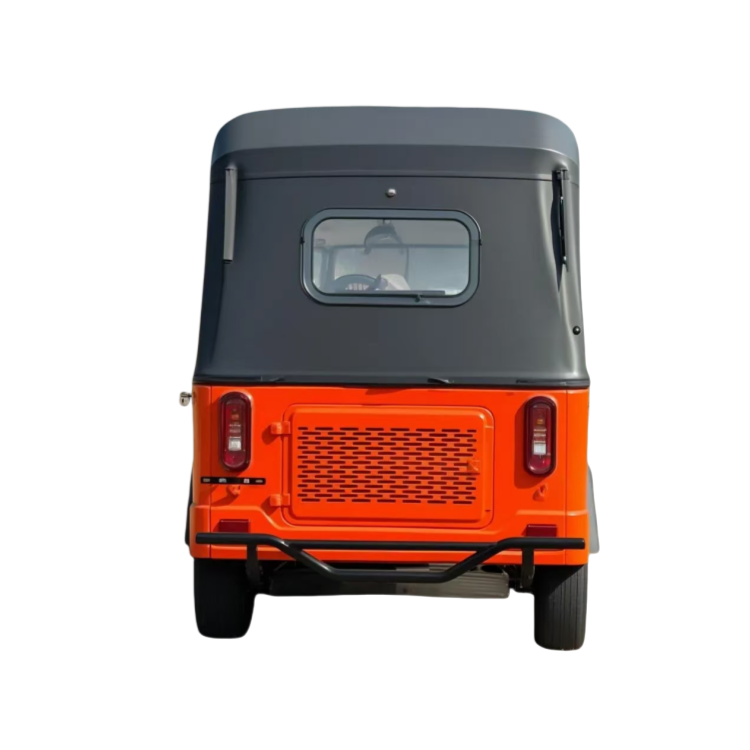

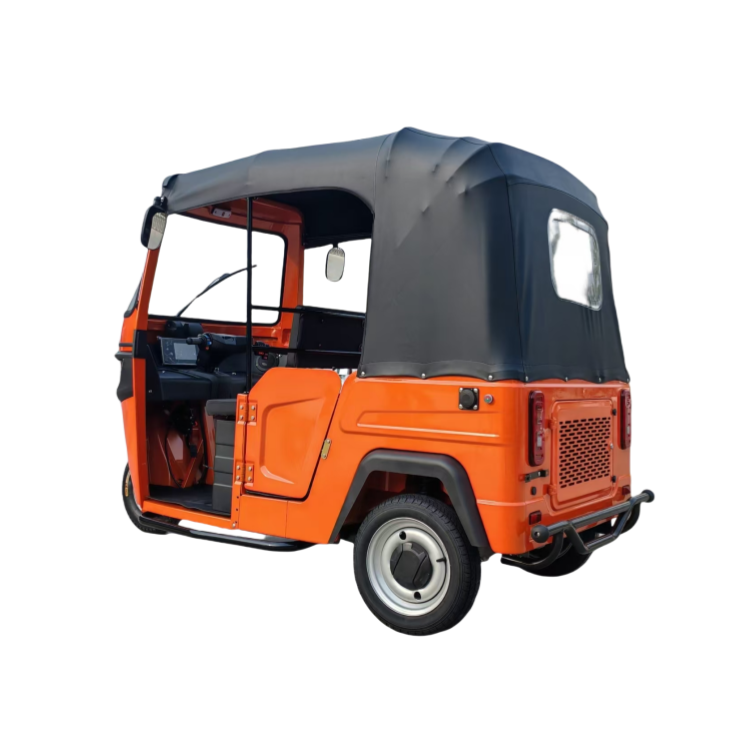

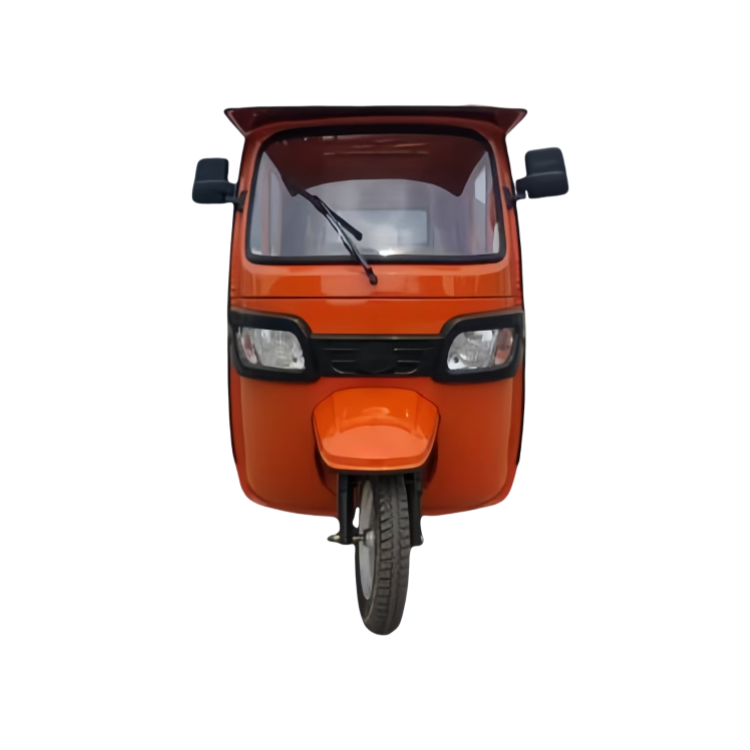

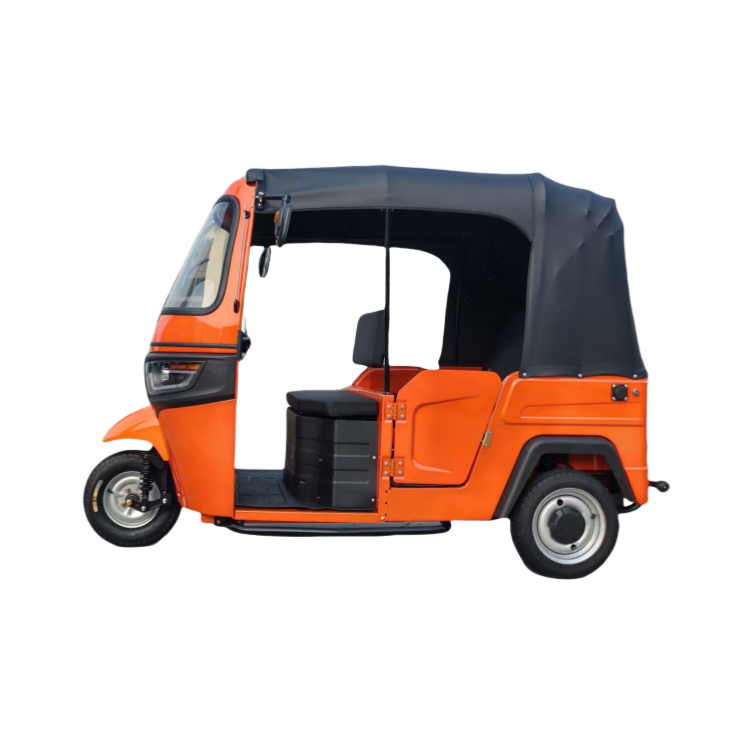

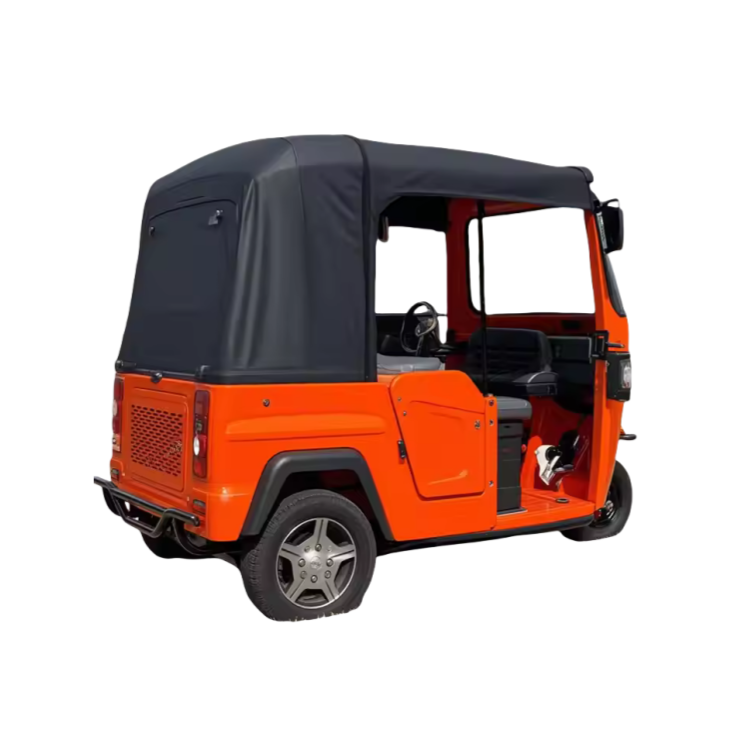

The 3000W TUK Electric Passenger Tricycle redefines urban mobility with its unmatched blend of power, range, and compact agility. Designed for crowded cities and rural adventures, this 1+3 seater conquers 35° slopes with its 60V3000W AC motor and delivers an industry-leading 140-165 km range on a single charge. Featuring automotive-grade suspension, dual disc brakes, and ultra-efficient lithium technology, the TUK excels at family commutes, tourist transport, and last-mile logistics – all while offering exceptional ROI for entrepreneurs.
Parameter list
| Model | 3000W TUK Electric Passenger Tricycle |
| Overall vehicle dimensions (mm) | 2650*1350*1790 |
| Dashboard | Electrical with Dashboard |
| Motor controller | 60/72V 3000w adaptive, suitable for lithium iron phosphate batteries Voltage upper limit 93v, lower limit 63v |
| Rear axle | Oil bath brake, automotive ball joint rod |
| Front brake | 180mm diameter disc brake |
| Rear brake | 220mm diameter disc brake |
| Climbing angle | 35° |

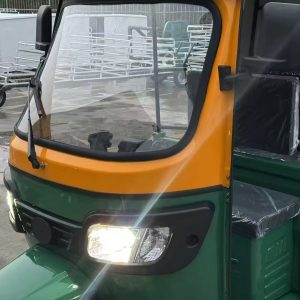

| Front headlights | LED |
| Loading Capacity | 1+3people |
| Optional | Optional: Manual integrated handbrake, LED headlights |
| Wheel hub | wheel hub |
| Motor | 60V 3000W AC motor |
| Front shock absorber | Dual shoulder telescopic shock absorber front fork |
| Rear suspension | independent suspension |
| Maximum speed | 55 Km/h |
| Front and Rear tires | F 125-65-12/R 125-65-12 |
| Endurance | 140-165km |
| Battery | 60v150AH lithium-ion battery |
| Charging time | 8-10h |
| Loading in 40HQ | SKD 27/CKD 40 |
| Application Scenarios | Short-distance commuting, family trips, commuting within the park, community trips, rural tourism |
Unstoppable Hill-Climbing Power
60V3000W AC Motor: Dominates 35° slopes (1:1.4 grade) – 40% steeper than competitors.
Adaptive Controller: Works with 60V/72V LiFePO₄ batteries (63V-93V range).
Record-Setting Range
60V150AH Lithium Battery: 140-165 km per charge – 2x industry average.
8-10H Fast Charging: Minimizes downtime for commercial operators.
Automotive-Grade Safety
Oversized Disc Brakes: 180mm (front) / 220mm (rear) halt at 55 km/h instantly.
Advanced Suspension: Dual-shock front fork + independent rear suspension absorb potholes.
Entrepreneur-Ready Value
40HQ Shipping: 27 SKD or 40 CKD units – lowest shipping cost per vehicle.
Modular Options: Add LED lights/handbrake for customized operations.
| Feature | TUK Tricycle | Standard E-Trikes |
|---|---|---|
| Climbing Ability | 35° slope capability | Max 20-25° slopes |
| Range Efficiency | 165 km (real-world) @ 3000W power | Avg. 60-80 km 1500W |
| Braking System | Oil-bath rear axle + dual discs | Basic drum brakes |
| Suspension | Independent rear + dual-shock front | Rigid rear axle |
| Commercial ROI | 2x passenger capacity + 40 units/container | 15-20 units/container |
Key Edge: Only tricycle merging motorcycle agility with car-grade suspension and truck-like hill-climbing for brutal urban terrain.
Q: How does it achieve 165km range with 3000W power?
→ A: High-density 150AH lithium battery + regenerative braking + aerodynamic tuk-tuk design.
Q: Can it really carry 4 adults up steep hills?
→ A: Yes! Oil-bath rear axle prevents overheating; 3000W motor maintains torque at 5 km/h on 35° inclines.
Q: Maintenance requirements for brakes/suspension?
→ A: Sealed oil-bath rear axle (no maintenance); disc pads last 15,000 km in city use.
Q: Battery lifespan in commercial daily use?
→ A: 2,000+ cycles (7+ years) with LiFePO₄ chemistry – includes deep discharge protection.
Q: Difference between SKD/CKD shipping?
→ A: SKD (27 units): 80% pre-assembled; CKD (40 units): Kit form for local tax benefits.
Q: Why choose this over a minivan?
→ A: 1.35m width for alley access + 55 km/h top speed + 60% lower operating costs.

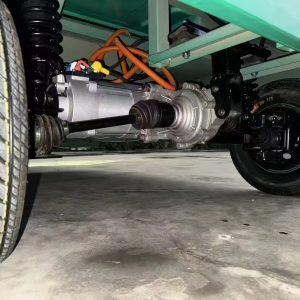

Oil-Bath Rear Axle: Automotive ball-joint linkage – sealed against dust/water.
Dual-Shock Front Fork: Double-shoulder swing arm absorbs curbs/potholes.
Tire Science: 125/65R12 low-profile tires – optimal grip-to-rolling resistance.
Ultimate Urban Warrior: The TUK isn’t just a tricycle – it’s a parkour champion for asphalt jungles. With extreme climbing, unprecedented range, and commercial-grade toughness, it outworks vehicles twice its size. For drivers who measure value in smiles-per-mile and entrepreneurs counting profit-per-trip, this is the electric workhorse that pays for itself.
