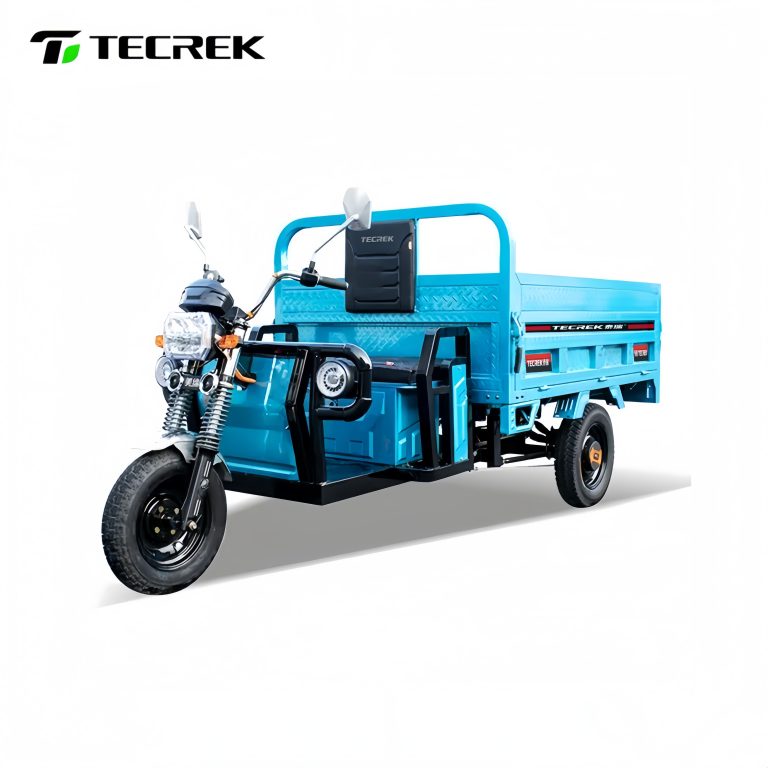

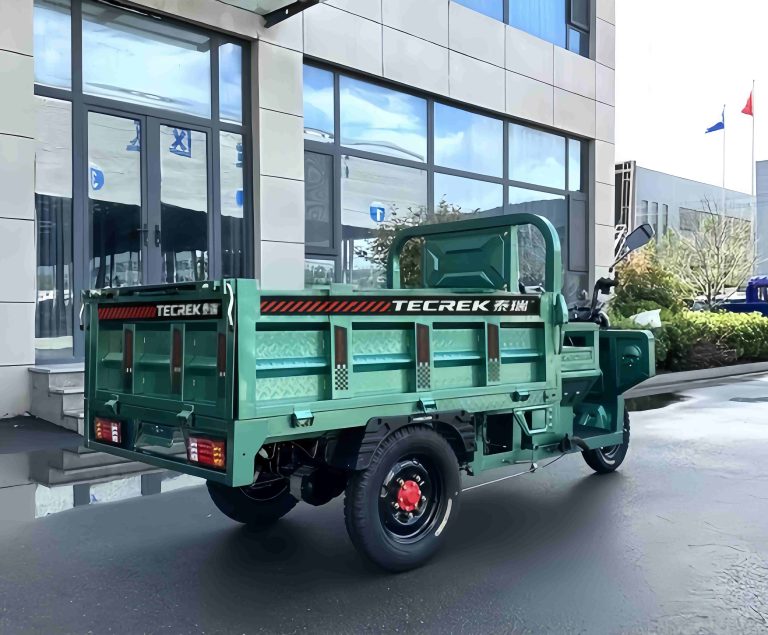

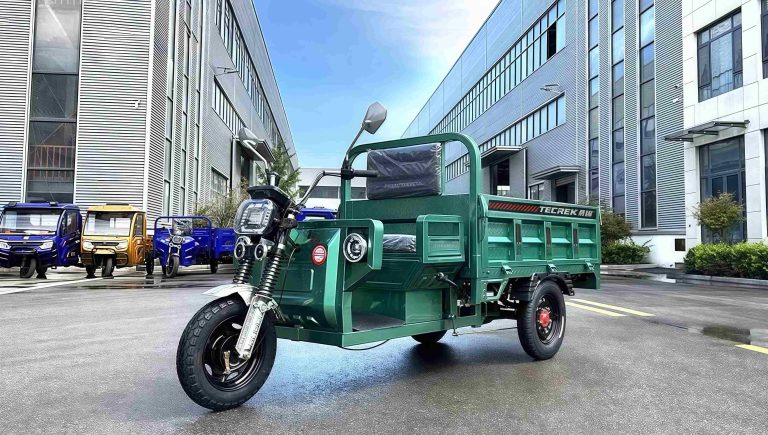

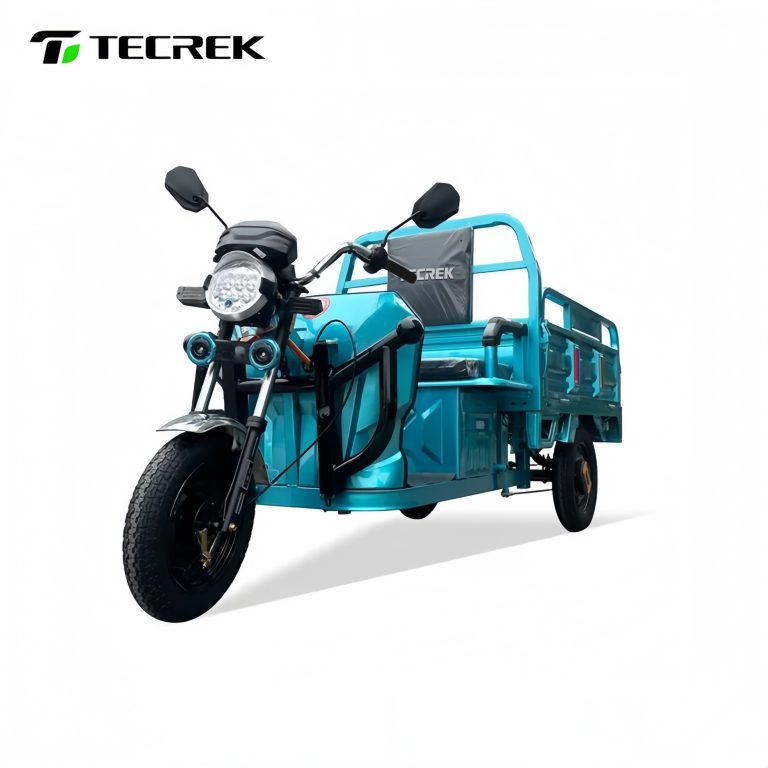

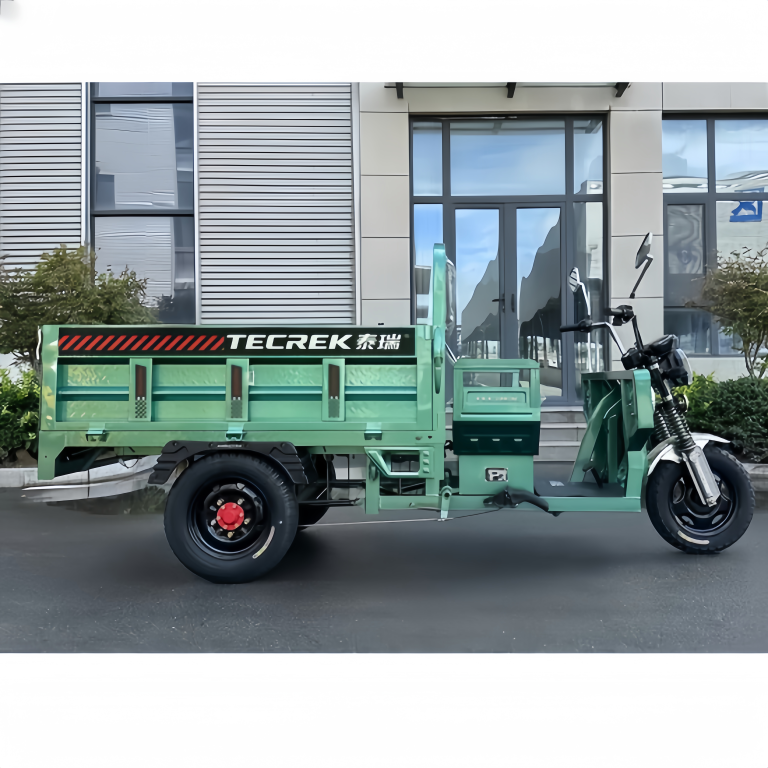

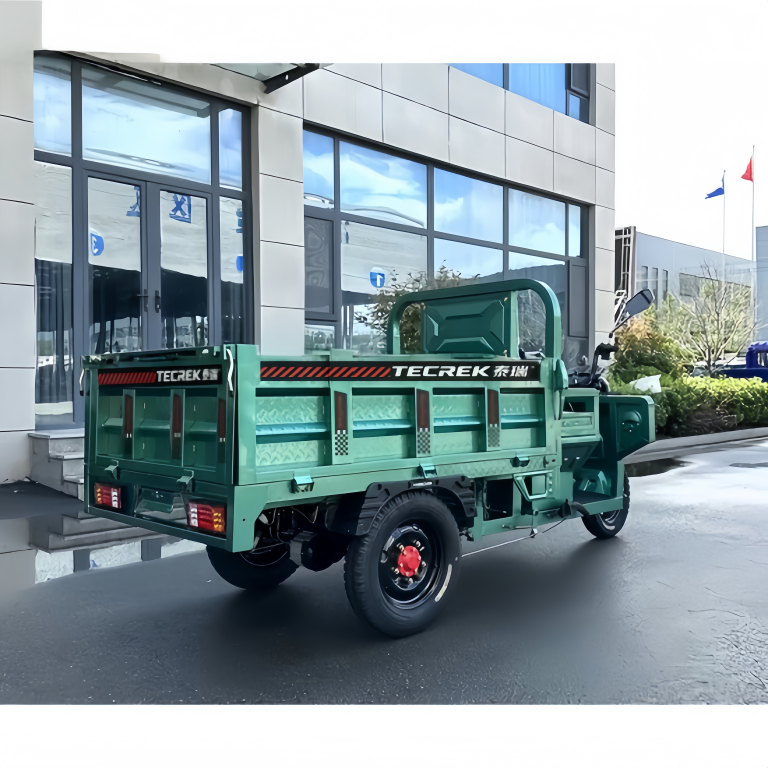

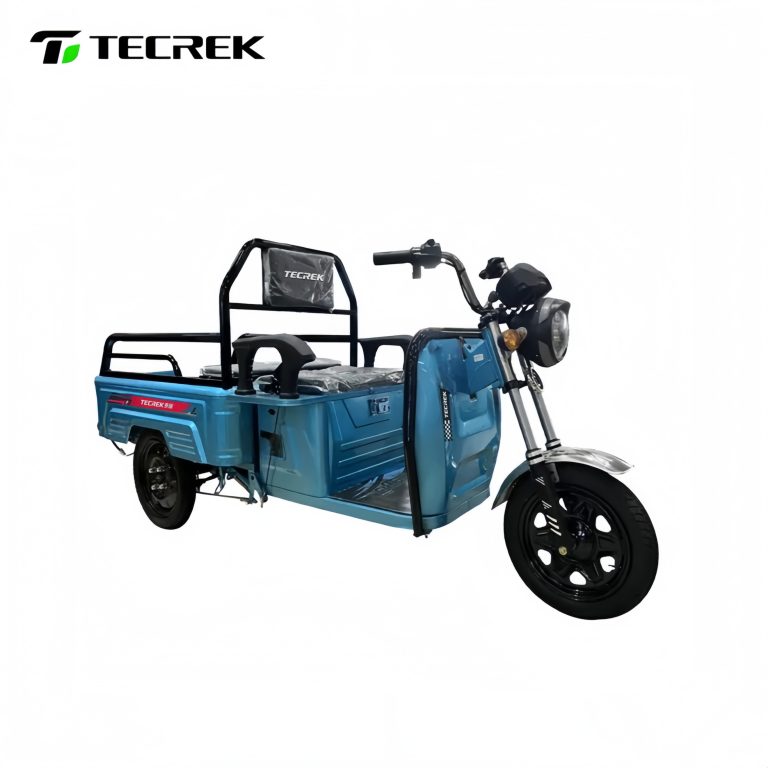

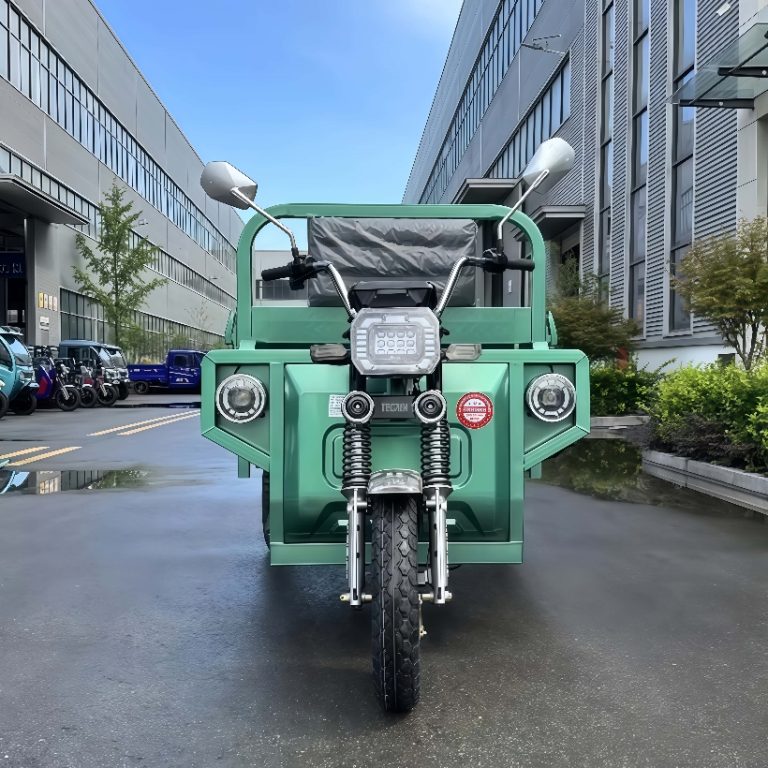

Model C113 electric cargo vehicle is a compact electric cargo vehicle designed for short-distance logistics and urban delivery. With a high payload capacity, tight turning radius, and low operating costs, it provides a practical and reliable electric solution for last-mile transportation and light commercial use.
The C113 electric cargo vehicle is a lightweight electric tricycle / electric light commercial vehicle engineered for efficient goods transportation in urban and semi-urban environments. It focuses on maneuverability, load capacity, and durability, making it ideal for last-mile delivery, small business logistics, and community services.
| Standard Configuration | |
| Model | C113 |
| Optional colors | red, blue, green, yellow, grey, white |
| L*W*H(mm) | 3085*1180*1400 |
| Cargo Box size(mm) | 1600*1100 |
| Wheel base(mm) | 2055 |
| Wheel track(mm) | 960 |
| Minumum ground clearance(mm) | ≥150 |
| Minimum turning radius(m) | ≤4 |
| Curb weight(kg) | 262Kg |
| Rated load (kg) | 500 |
| Max speed(km/h) | 45 |
| Grade ability(%) | ≤15 |
| Battery | 60V45AH-58AH |
| Motor, Controller(w) | 60V1000W |
| Range per charging(km) | 50-60 |
| Charging time(h) | 6~8h |
| Front/Rear tyre | 3.75-12/4.00-12 |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand Brake |
The C113 electric cargo vehicle features a compact body structure optimized for narrow streets and high-frequency delivery scenarios. With overall dimensions of 3085 × 1180 × 1400 mm and a wheelbase of 2055 mm, the vehicle maintains excellent stability while allowing easy access to alleys, markets, and residential areas where larger vehicles are impractical.
Designed for cargo efficiency, the vehicle is equipped with a 1600 × 1100 mm cargo box, providing sufficient space for daily goods, parcels, and tools. With a rated load capacity of 500 kg and a curb weight of only 262 kg, the C113 achieves an outstanding load-to-weight ratio, improving energy efficiency and reducing operating costs for users.
Powered by a 60V battery system (45Ah–58Ah) and a 60V 1000W motor with matched controller, the vehicle delivers stable and reliable performance for daily logistics operations. The range per charge of 50–60 km is well-suited for short-distance urban delivery routes, community distribution, and internal logistics within industrial parks or campuses.
The C113 is engineered for ease of operation and safety. A minimum turning radius of ≤4 meters enables smooth maneuvering in confined spaces, while a minimum ground clearance of ≥150 mm allows the vehicle to handle uneven roads, speed bumps, and rural paths with confidence. The maximum speed of 45 km/h balances efficiency and safety for urban delivery use.
The chassis system adopts front and rear drum brakes, providing dependable braking performance under loaded conditions. A hand-operated parking brake ensures secure parking during loading and unloading operations. The front and rear tire sizes of 3.75-12 / 4.00-12 offer good load-bearing capability and road adaptability.
Charging is simple and convenient, with a charging time of 6–8 hours, allowing overnight charging and uninterrupted daily operation. Multiple optional body colors—including red, blue, green, yellow, grey, and white—support branding and fleet identification requirements.
As a practical customized vehicle platform, the C113 can be adapted for different cargo configurations and special vehicle applications, making it suitable for a wide range of commercial scenarios.
Compact electric cargo vehicle design
500 kg rated payload capacity
60V battery system with 1000W motor
Large cargo box (1600 × 1100 mm)
Small turning radius (≤4 m)
Easy access to narrow streets and dense urban areas
High load efficiency with low vehicle weight
Low energy consumption and maintenance costs
Simple operation and reliable braking performance
Reduced last-mile delivery costs
Improved delivery efficiency in congested areas
Lower total cost of ownership (TCO)
Suitable for small businesses and fleet operations
Proven electric tricycle drivetrain architecture
Widely used drum braking system for cargo vehicles
Practical design optimized for urban logistics use
Last-mile urban delivery
Community and residential logistics
Small business goods transportation
Market and retail distribution
Customized special vehicle applications
With strong capabilities in electric vehicle development and manufacturing, Shandong Tairui Automobile & Electronics Co., Ltd. provides reliable electric logistics solutions for global markets. From product design to OEM customization and after-sales support, we help customers improve operational efficiency and reduce procurement risks.
Looking for a cost-effective electric cargo vehicle or a customized electric tricycle solution for your logistics needs?
Contact us today to receive detailed specifications, customization options, pricing information, and professional technical support.
Q1: What is the maximum payload capacity of the C113?
The rated load capacity is 500 kg, suitable for daily urban delivery tasks.
Q2: What is the driving range per charge?
The vehicle offers a range of 50–60 km per charge, depending on load and road conditions.
Q3: Is the C113 easy to operate in narrow areas?
Yes. Its compact size and ≤4 m turning radius make it ideal for tight urban spaces.
Q4: How long does it take to fully charge the battery?
The charging time is approximately 6–8 hours, suitable for overnight charging.
Q5: Can the vehicle be customized?
Yes. OEM customization is available, including cargo box configuration and color options.
