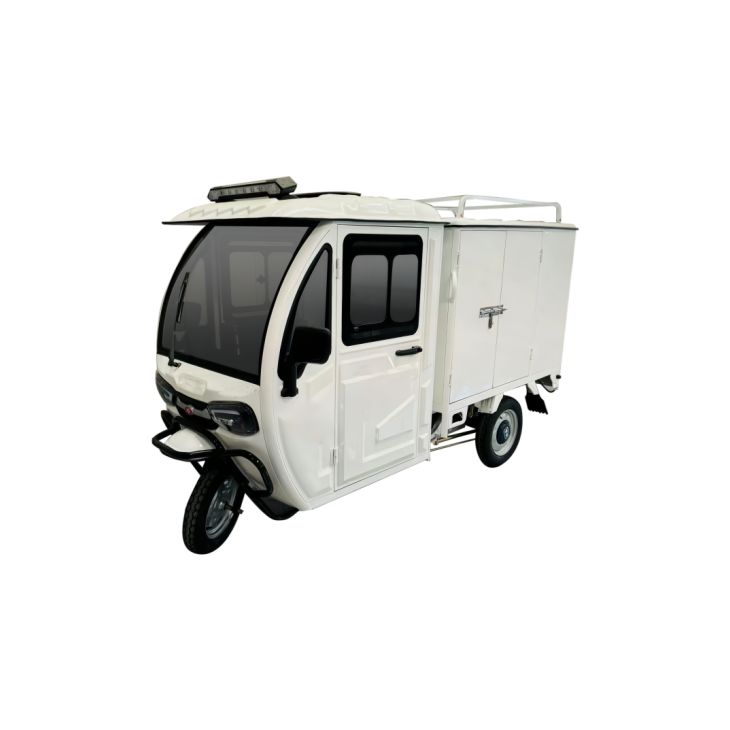

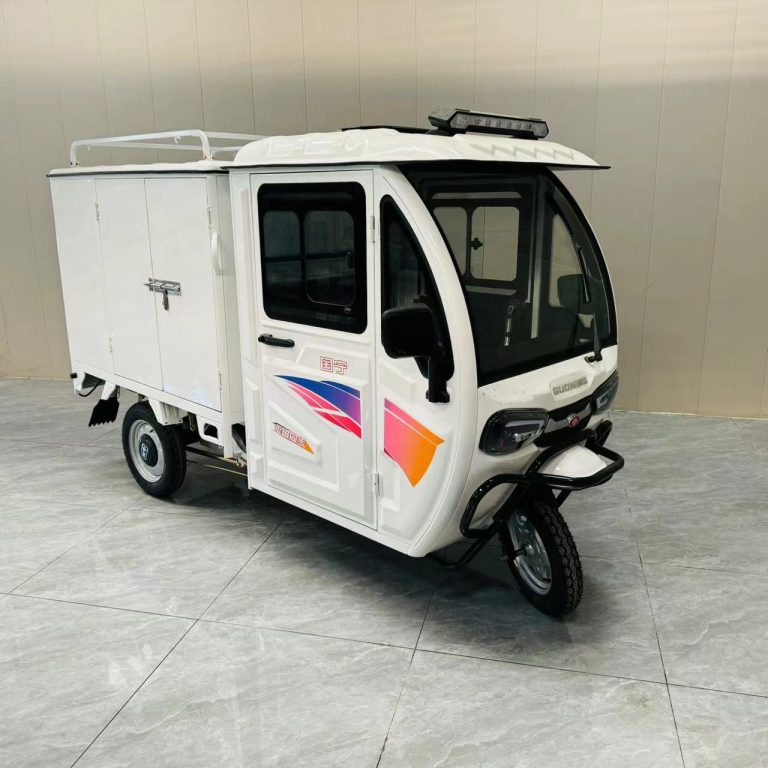

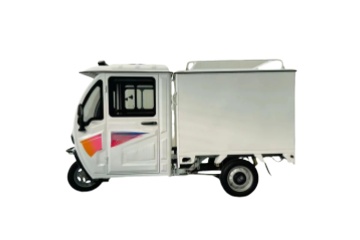

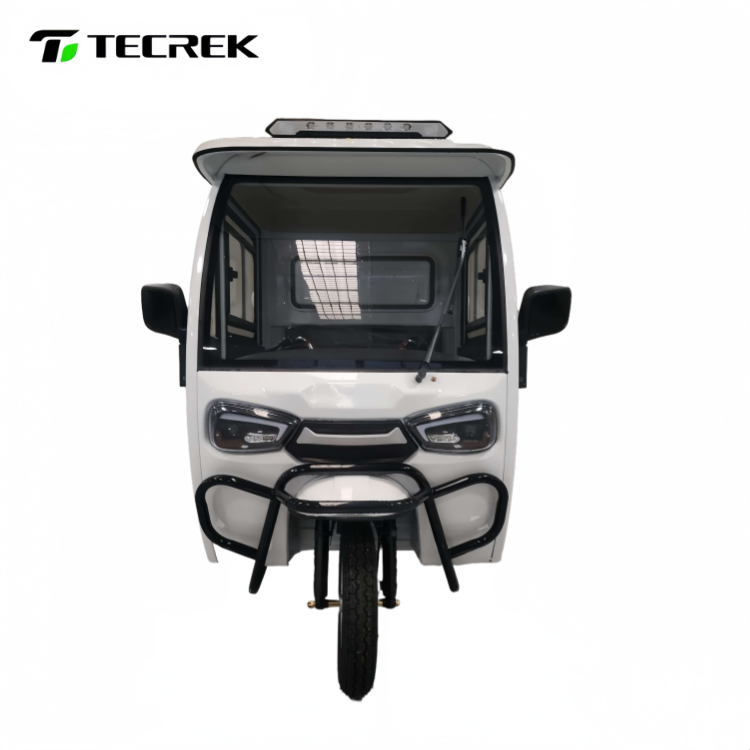

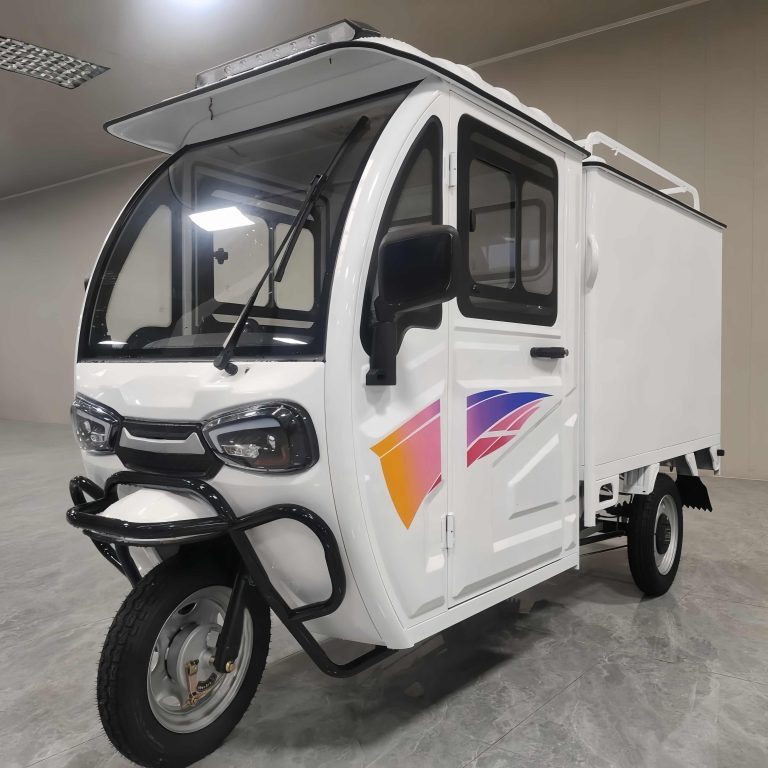

The 1.5m Closed Express Delivery Transport Tricycle redefines urban logistics with its ultra-compact design (2930×1060×1695mm) – the narrowest in-class profile for navigating alleys and restricted zones. Engineered for last-mile efficiency, this COC-certified workhorse features a waterproof, dustproof, and anti-theft cargo compartment, powered by a 60V800W motor (38 km/h top speed) with 45km range. Ideal for couriers navigating dense cities, its modular design supports motor/controller upgrades while the weatherproof cab ensures all-day operational resilience.
Parameter list
| Standard Configuration | |
| Model | 1.5m Closed express delivery transport tricycle |
| Overall vehicle dinensions(mm) | 2930*1060*1695 |
| Dashboard | Integrated workstation |
| Motor controller | Permanent Magnet Synchronous 18-Phase Controller |
| Rear axle | Integral rear axle |
| Front brake | 37 Shock absorption/front brake 130 |
| Rear brake | 160 brake drum |
| Climbing angle | 15° |
| Front headlights | LED |
| Ground clearance | 140mm |
| Weight | 327kg |
| Load | 175kg |
| Optional | Optional: motor,controller,tires,rear axle |
| Wheel hub | Wheel hub |
| Motor | 60v800w motor |
| Front shock absorber | Hydraulic shock absorber |
| Rear suspension | Reinforced steel plate leaf spring |
| Maximum speed | 38km/h |
| Front and Rear tires | F375-12/R375-12 |
| Endurance | 45KM |
| Battery | 60V 52A |
| Color | Blue,Green,Silver,Red |
| Authentication | National first-level production qualification, COC certification |
| Charging time | 6-8hour |
Ultra-Compact Agility
1.06m Width: Squeezes through narrow alleys/gated communities where vans fail.

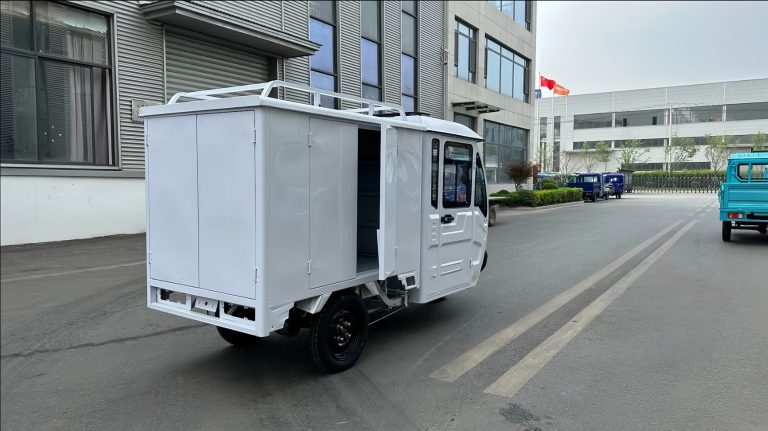

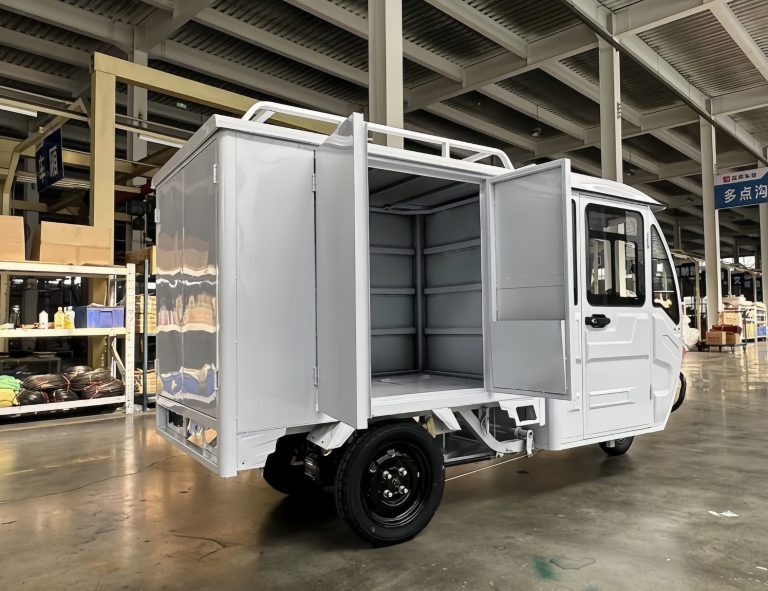

Fully Sealed Cargo: IP54-rated compartment protects parcels from rain, dust, and theft.
Operational Efficiency
45km Range: Covers full-day urban routes on one charge (6–8 hrs).
60V800W Motor: Optimized for stop-start delivery cycles (0.12 kWh/km).
All-Weather Reliability

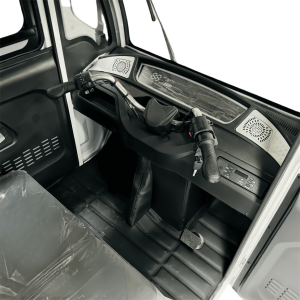

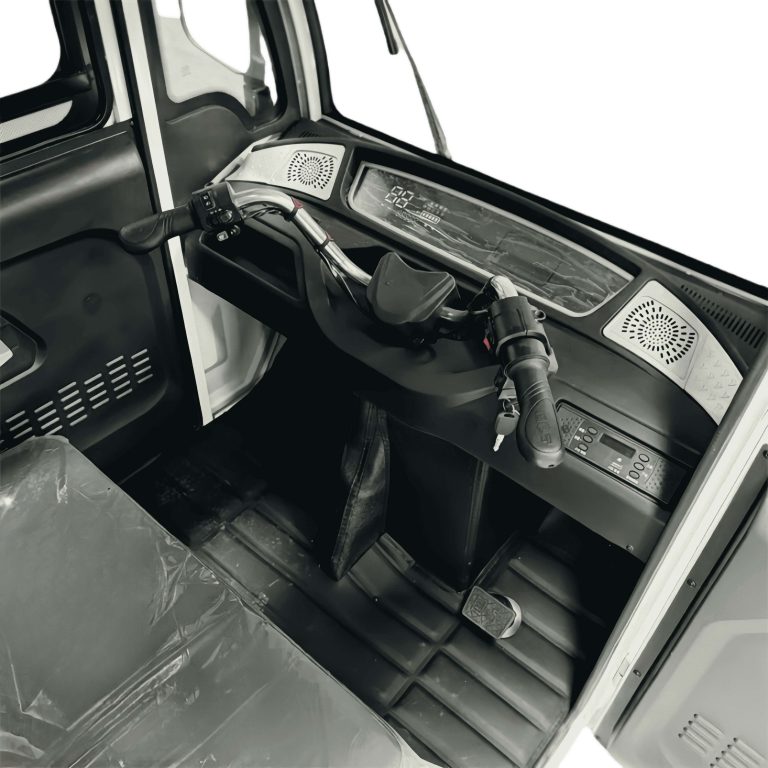

Driver Cab: Shields from rain/sun; integrated dashboard simplifies controls.
Reinforced Suspension: Hydraulic front shocks + leaf spring rear handle 175kg loads on rough roads.
Customizable Performance
Modular Upgrades: Optional motors (up to 1200W), controllers, tires, and axles.
24/7 Support: Dedicated technical assistance for fleet operators.
| Feature | This Model | Standard Delivery Trikes |
|---|---|---|
| Urban Agility | 1.06m width (fits bike lanes) | Avg. 1.2m+ width |
| Cargo Security | Lockable, weather-sealed compartment | Open beds/tarpaulin covers |
| Certification | COC + National L1 Production Cert | Often uncertified |
| Customization | Motor/controller/tire/axle upgrades | Fixed configurations |
| Terrain Adapt. | 140mm clearance + 375-12 all-terrain tires | Low ground clearance |
Key Edge: Only trike merging EU-compliant security with hyper-narrow agility and modular power upgrades for congested cities.
Q: How narrow is it compared to competitors?
→ A: At 1.06m wide, it’s 15–30% narrower than standard delivery trikes – critical for European medieval streets/Asian alleys.
Q: Real-world range with 175kg load?
→ A: 45km (extendable to 60km with optional LiFePO₄ battery).
Q: Weatherproofing for monsoon climates?
→ A: Silicone-sealed doors/drainable floor; compartment stays dry in heavy rain.
Q: Upgrades for hilly cities?
→ A: Optional:
1200W motor: Handles 25° grades
Off-road tires: Enhanced wet traction
Q: Theft prevention for high-value parcels?
→ A: Steel-reinforced lock points + optional GPS tracker integration.
Q: Charging during shifts?
→ A: Swappable battery packs (optional) enable 2-minute “pit stops.”
Braking System: 130mm front disc + 160mm rear drum (ABS-like modulation).
Suspension: 5-layer leaf springs (rear) + hydraulic shocks (front).
Compliance: COC certification ensures EU road legality.
Colors: Blue/Green/Silver/Red (custom branding available).
The Last-Mile Revolution: This isn’t just a trike – it’s a congestion-killing delivery weapon. With alley-slicing agility, parcel vault security, and upgradeable endurance, it outmaneuvers vans while slashing costs. For couriers measuring value in stops-per-hour, this trike is the ultimate urban ally.
